Kaptan Aydemir

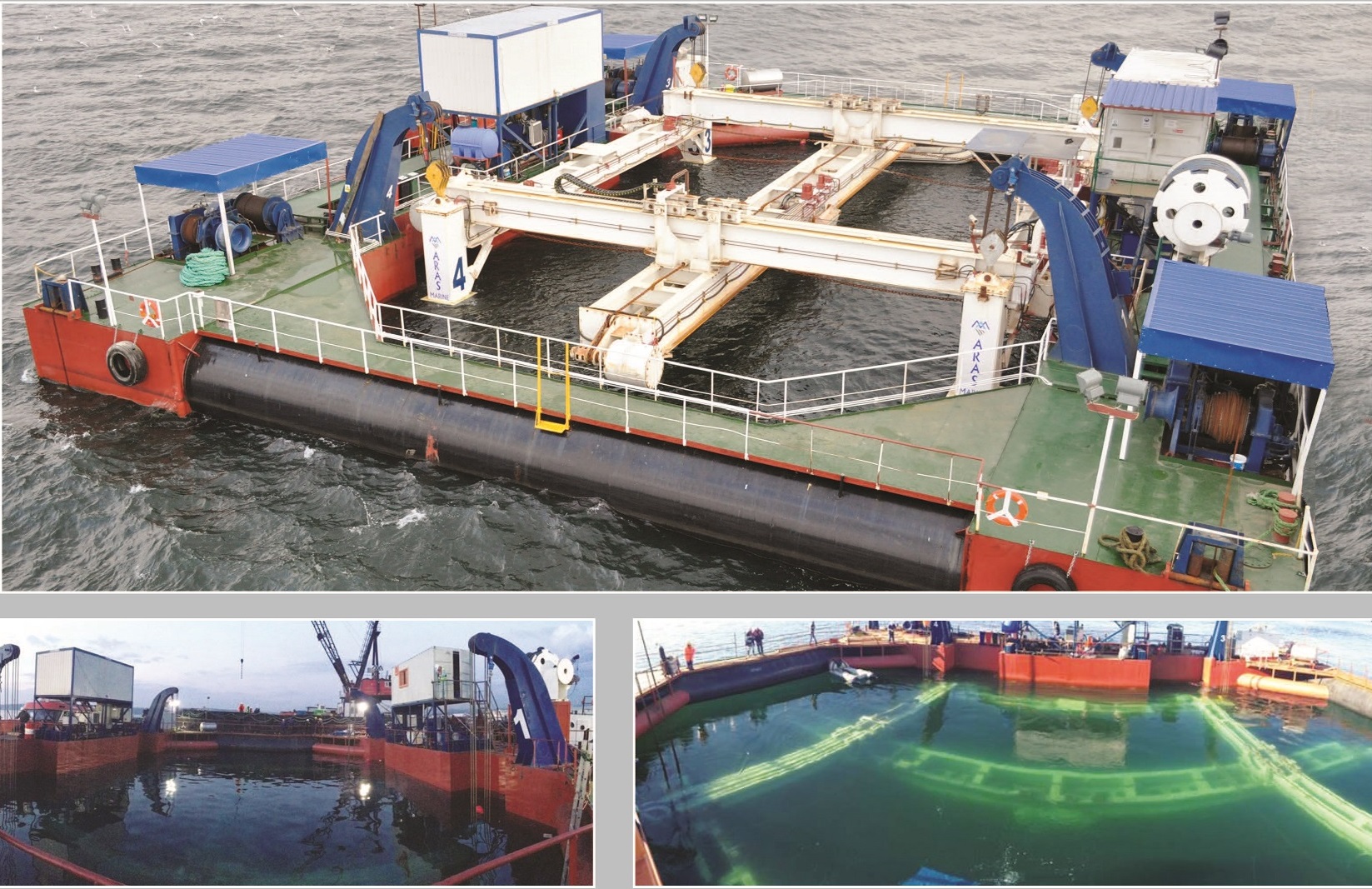

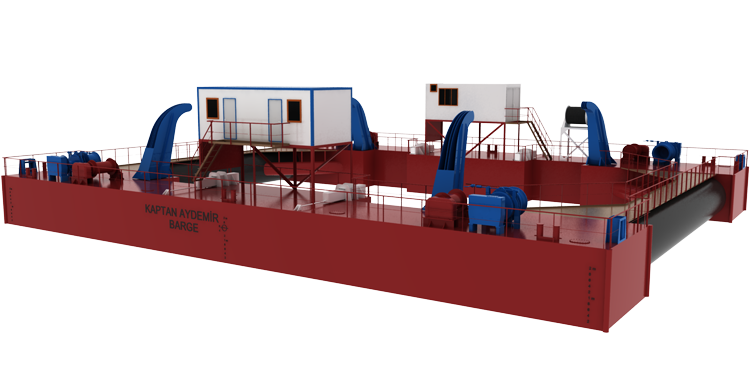

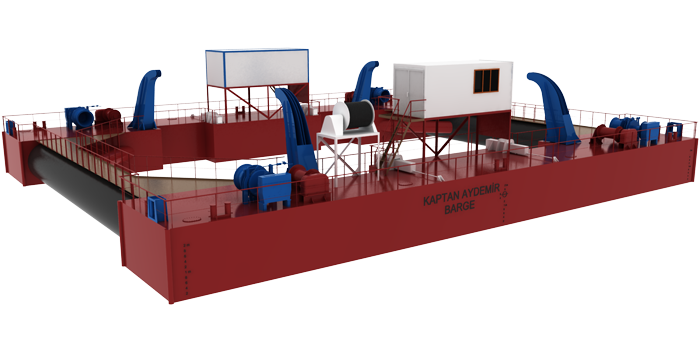

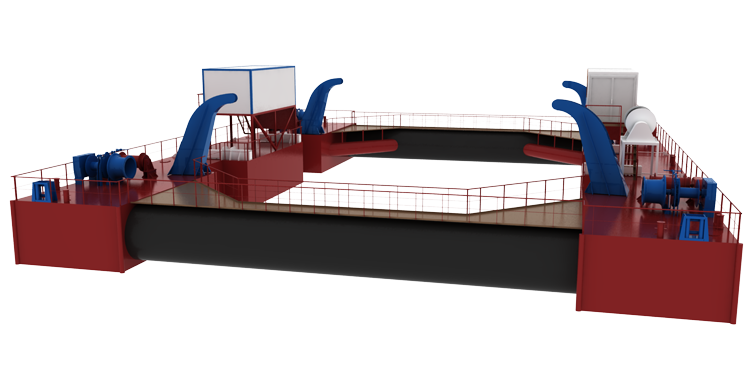

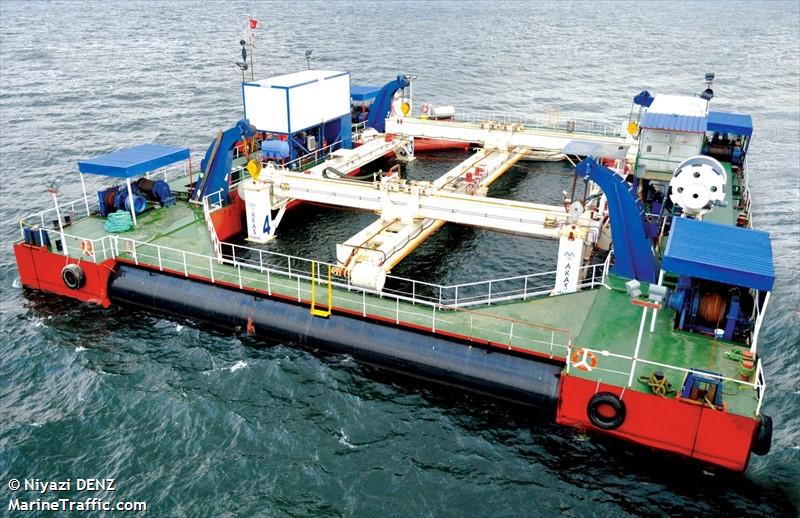

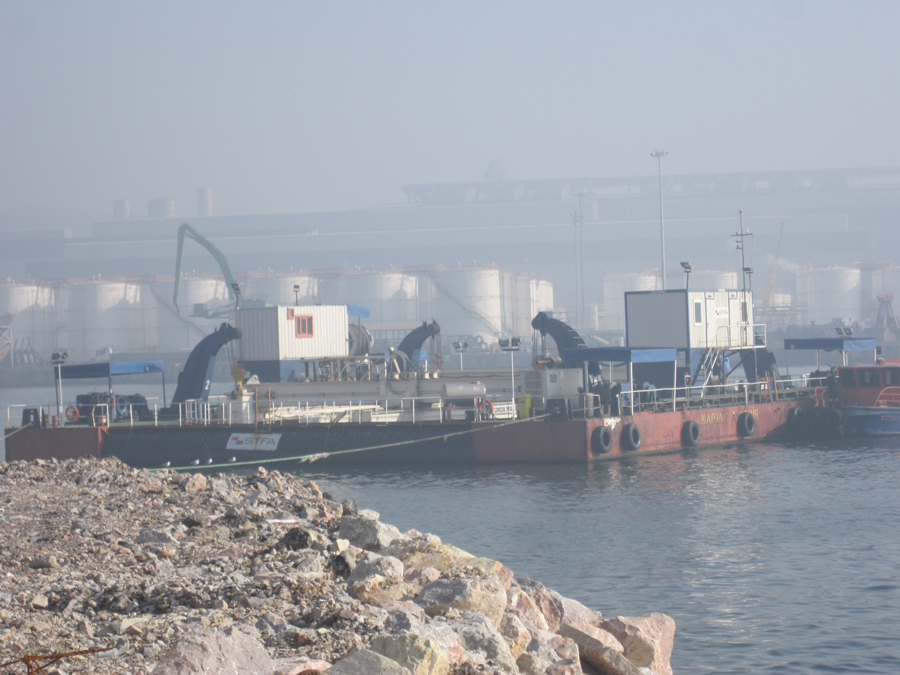

Kaptan Aydemir is 34.20m Underwater Levelling barge that designed for Aras Marine. The barge has has been designed to carry Underwater Levelling Equipment that has 24m width of undercarriage system and effective grading area of 215m2.

Main Particular

Loa 34.20 m
Lwl 34.20 m
B 28.00 m
d(operation) 1.05 m
d(scantling) 1.60 t/m2

DECK EQUIPMENTS

4x10 tons mooring winches, 4x14 tons handling winches (pulley system)

SURVEY SYSTEM

RTK-GPS, Gyro compass, USBL systems, transponders, Underwater cameras, Hydrostatic level transmitter, inclination sensor, plumb

AUTOMATION SYSTEM

Programmable Logic Controller, Encoders, Switch Boxes, Converters, scales, Transmitters, Pressure Sensors, Cameras and Projectors.

ULE CAPACITY

215m2 effective grading area by 2.40m width blades 8-12m/min speed.
