48m Crew Supply Vessel
48m Crew Supply Vessel

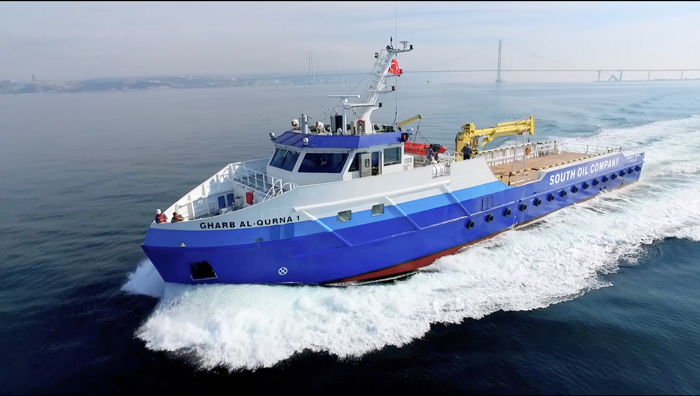

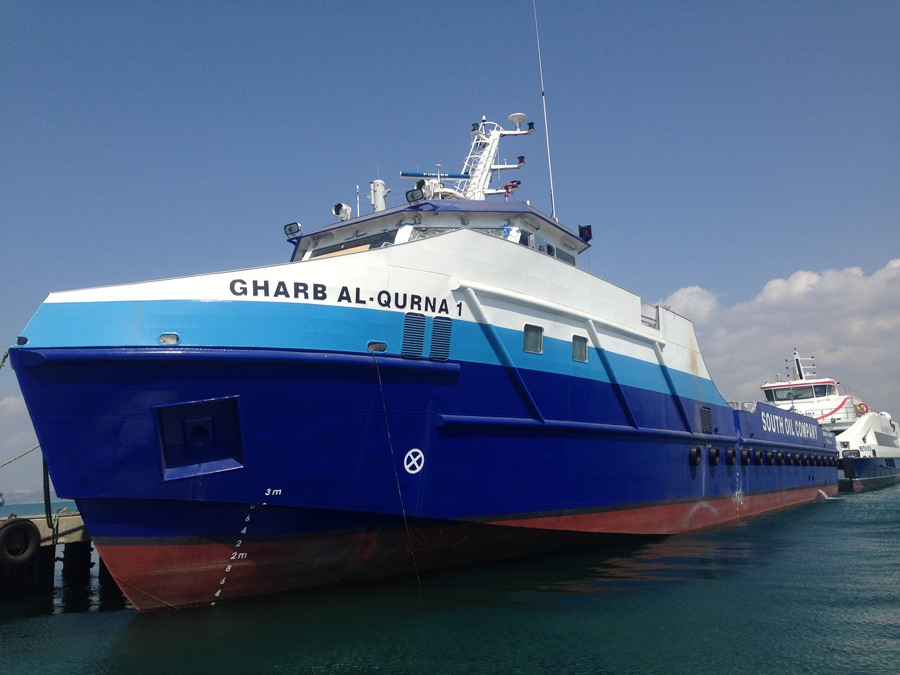

Gharb Al-Qurna 1 is 48m fast crew supply vessel, designed for South Oil company of Iraq. The vessel is built to transport fresh water, diesel oil and personnel to the oil and gas platforms in Basrah. The hull material is marine type aluminum alloy. (5083 H321). The vessel is driven by triple CAT 3516C, each 1920 kW. The vessel can operate up to the wave height of 5 meters.
Main Particular
| Loa | 47.50 m |
| Lwl | 46.00 m |
| B | 9.60 m |
| D | 4.30 m |
| d | 2.50 m |
| DWT | 280 t |
| Main Engine | 3x1920 kW |
| V | 21 knots |
| Cargo DO | 100 t |
| Cargo FW | 100 t |
| Personnel | 20 |
| No of Crew | 10 |
Download Technical Sheet
CLASS NOTATION
BV +Hull, •Machinery, Special Service/Fast Crew Supply Vessel, Coastal Area
PROPULSION SYSTEM

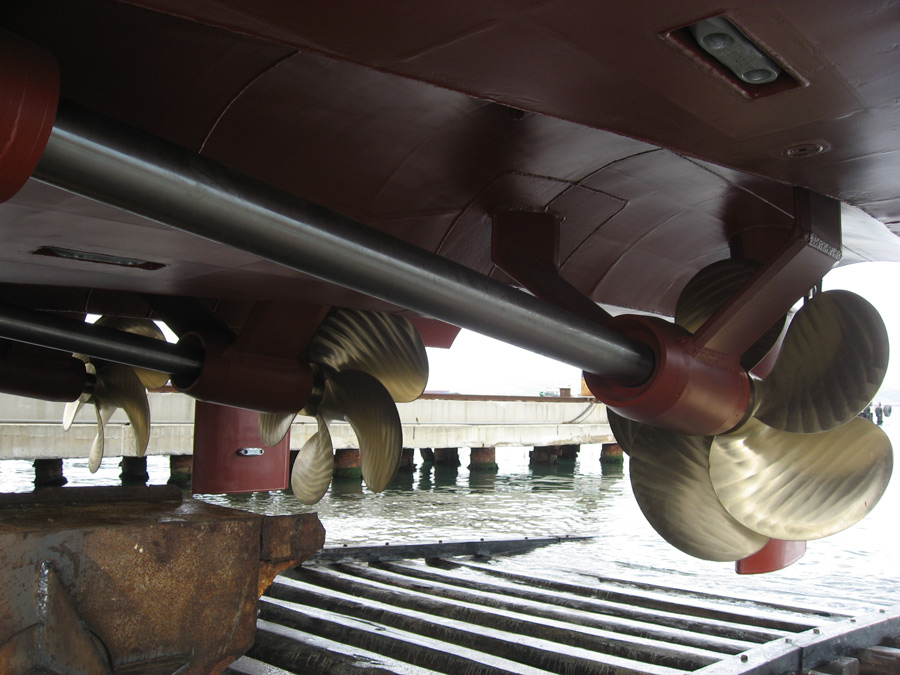

3x1920kW MAin Engines, Dia:1500mm Propeller
CAPACITIES
100t Cargo Diesel Oil, 185m2 Deck Cargo Area, 2x3m3 Freezer, Vegetable, Lobby and Dry Stores
ACCOMMODATION
10 Crew, 20 Passenger, Day/Mess Room, Pantry, Luggage Room
