37m Dredger
37m Dredger

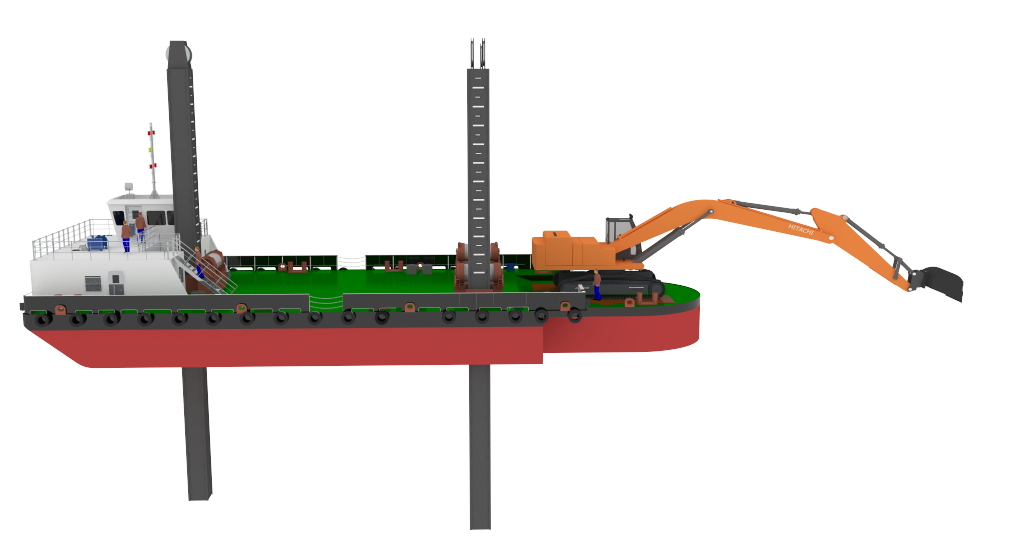

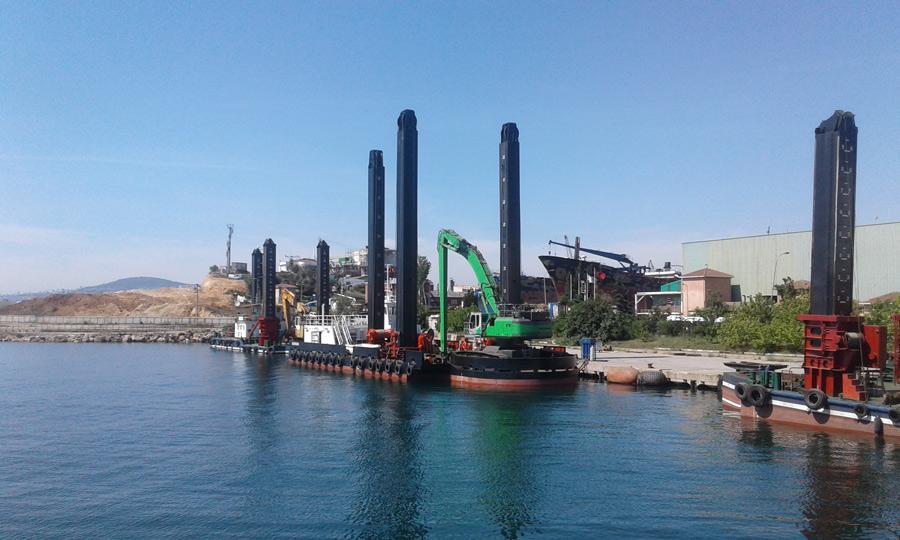

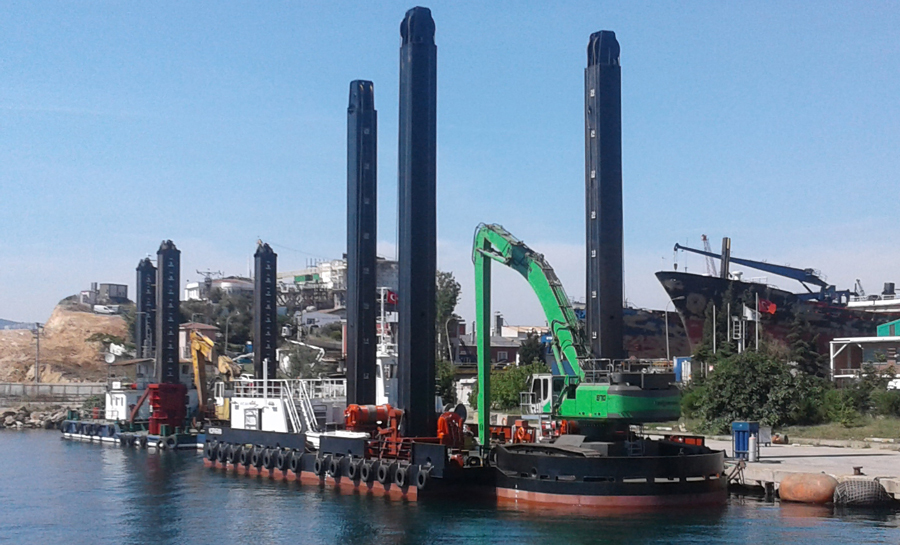

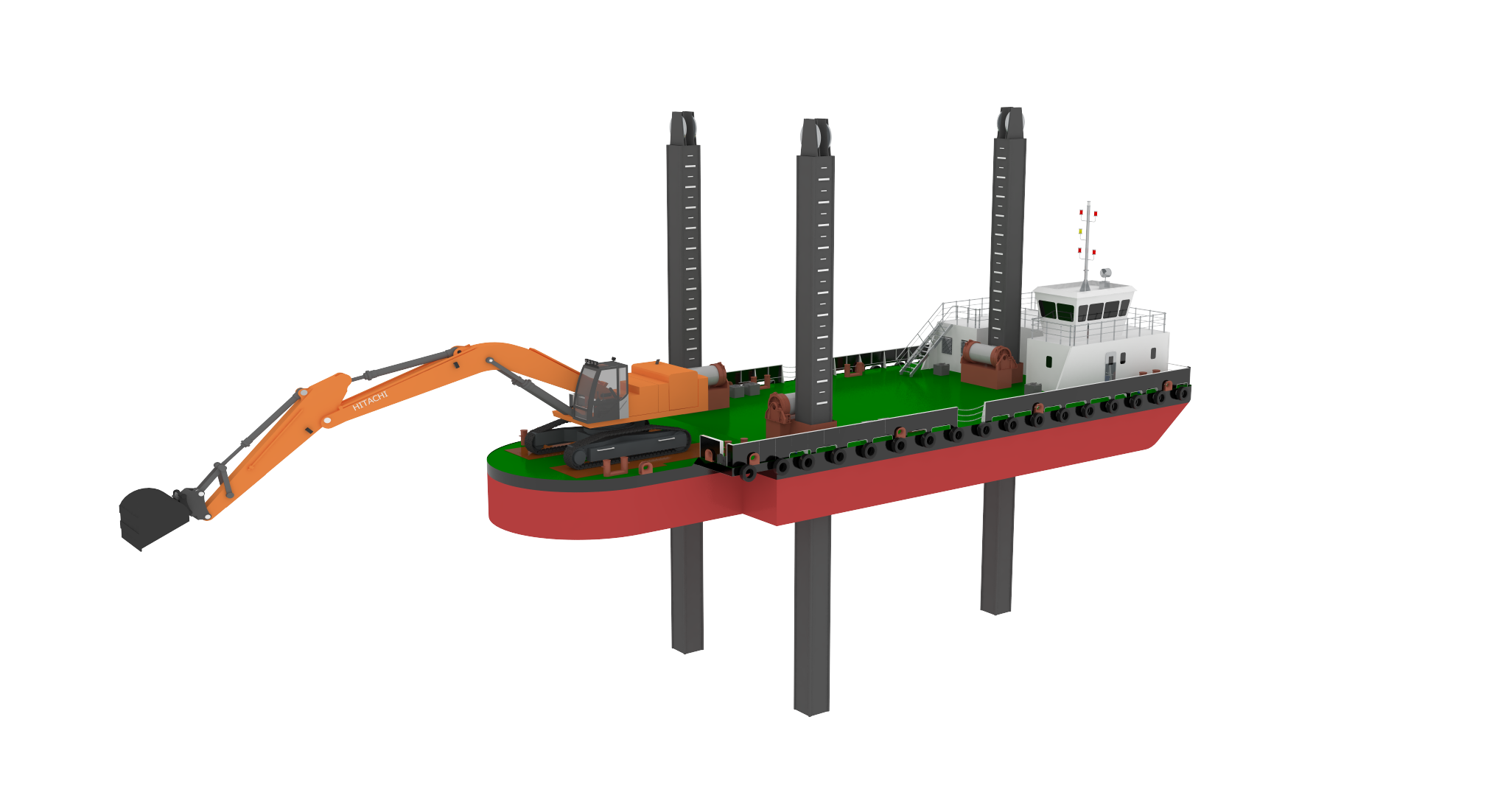

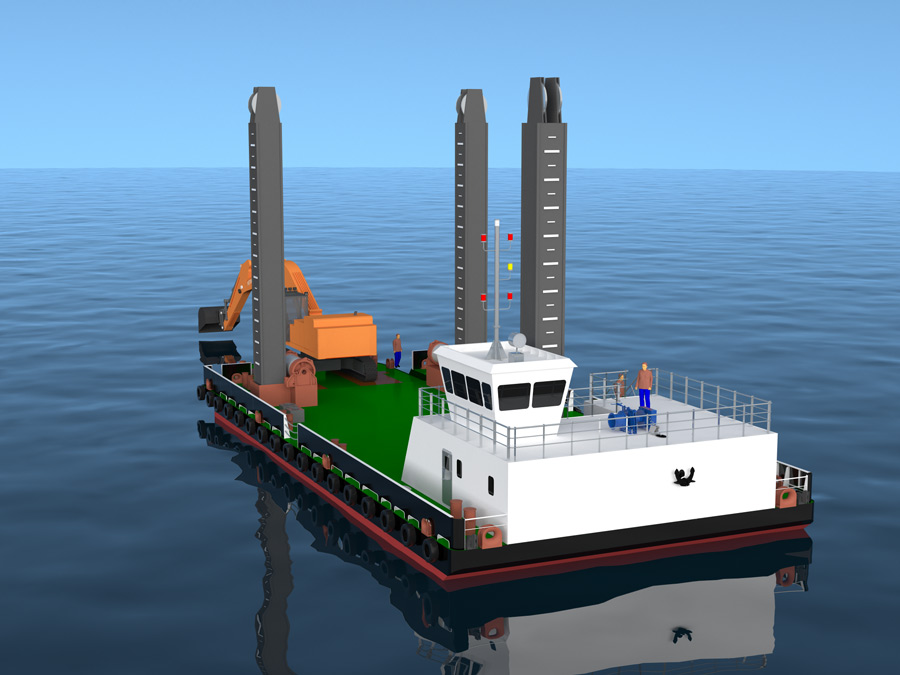

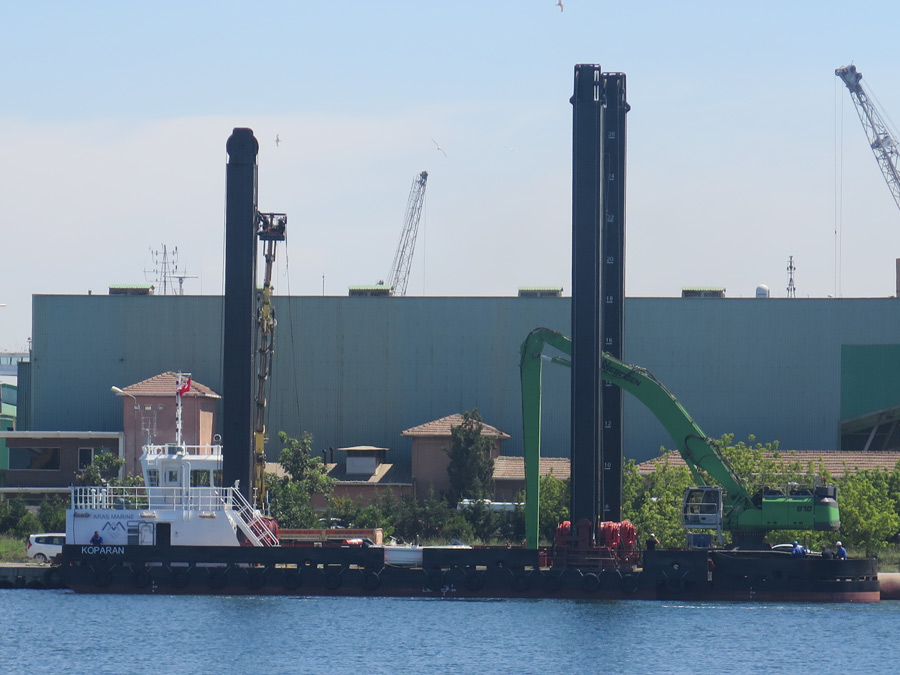

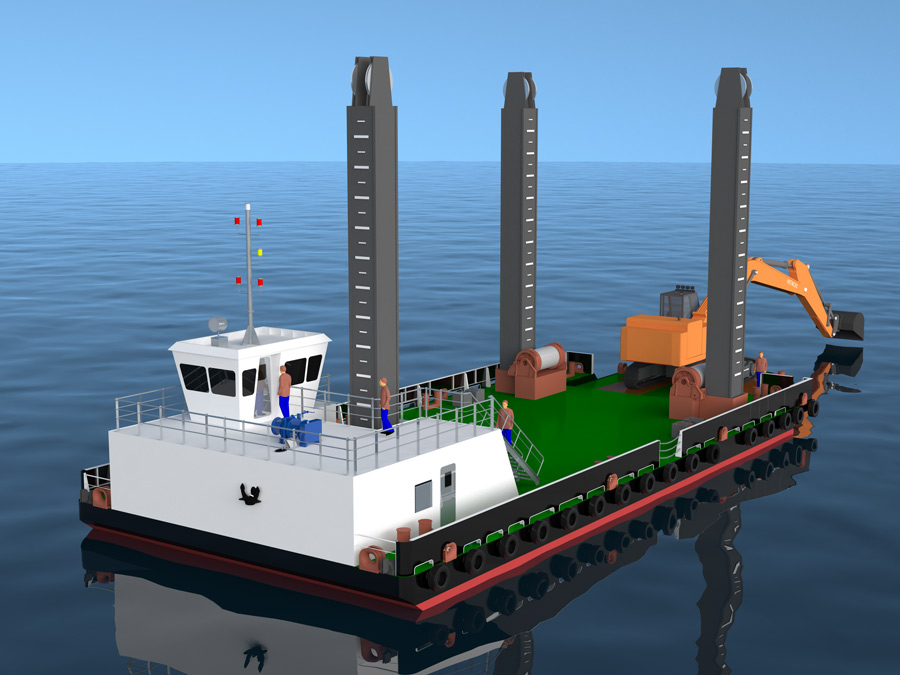

Koparan is 37.80m backhoe dredger with a working depth of -16m. The vessel has been designed for Aras Marine with ability to work with two different equipent; Hitachi ZX870 LCH-3 Excavator and Sennebogen 870C material handler.
Main Particular
| Loa | 37.80 m |
| Lwl | 37.40 m |
| B | 13.86 m |
| D | 2.95 m |
| d | 2.10 m |
| Deck Load | 3.00 t |
| Class | TL |
| Excavator | Hitachi ZX870 LCH-3 |
| Material Handler | Sennebogen 870C R90/550 B21 |
| Working Depth | -16m |
Download Technical Sheet
CLASS NOTATION
BV+Hull, +Machinery, Ro-Ro Passenger Ship, Coastal Area
DECK EQUIPMENTS

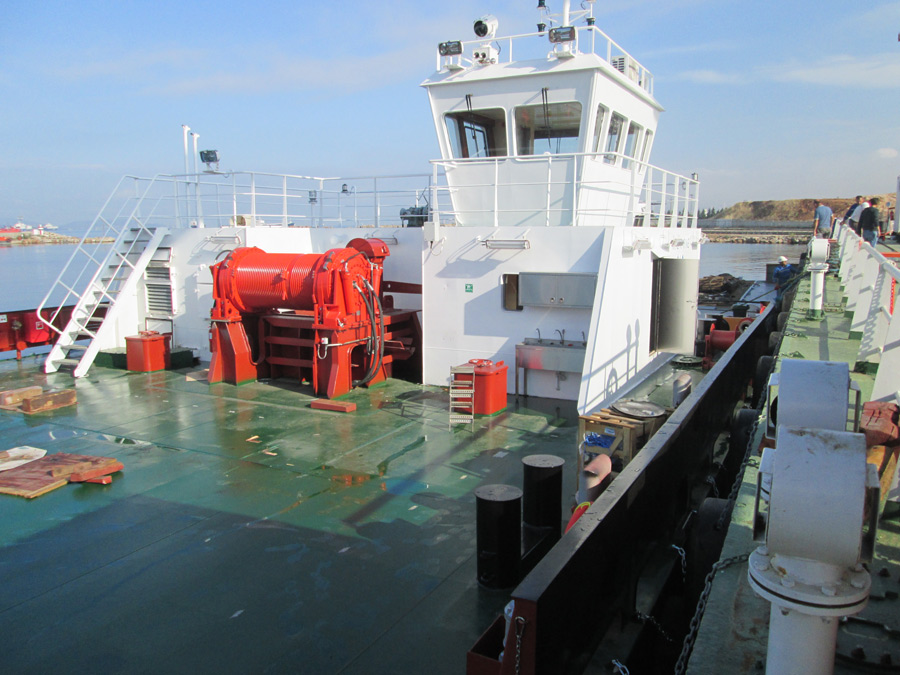

315 kg HHP anchor, windlass, 4 point mooring, 3x26m spuds, spud winches, Dredging equipment Hitachi ZX870 LCH-3 Excavator, Material handling equipment (optional) Sennebogen 870C
TANK CAPACITIES
Diesel oil 75m3, fresh water 225 m3, sewage 14 m3, bilge 17 m3.
ACCOMMODATION
Messroom/pantry, changing room/laundry, public WC and showers, store, control cabin.
