25m Tug
25m Tug

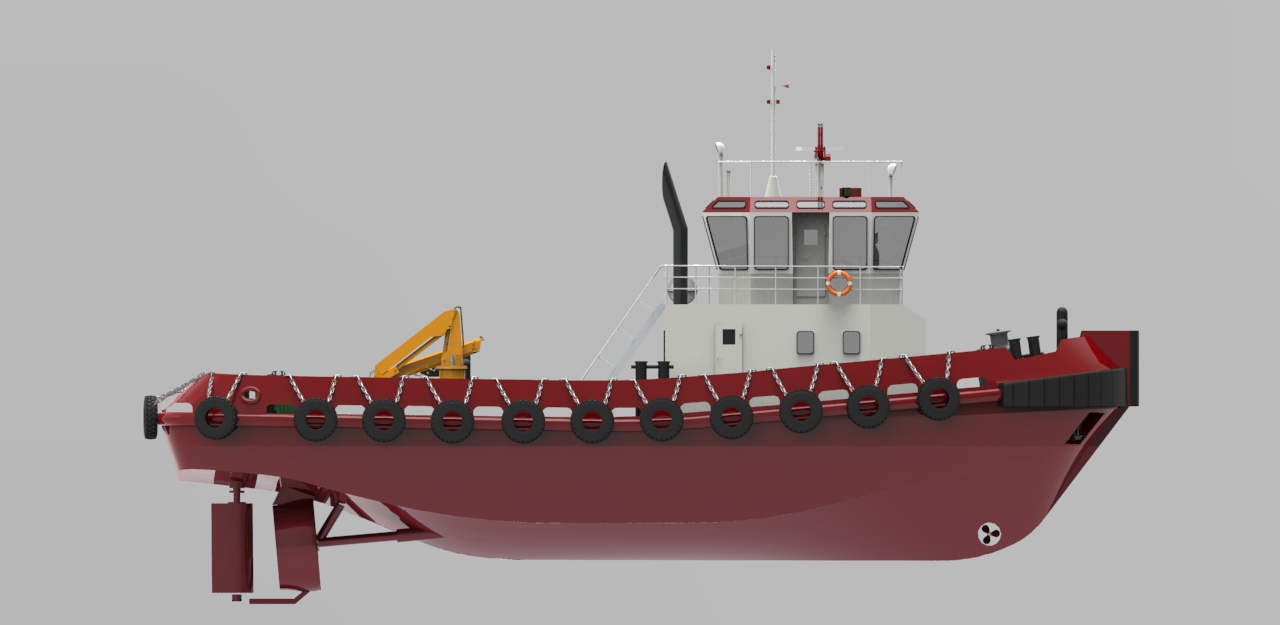

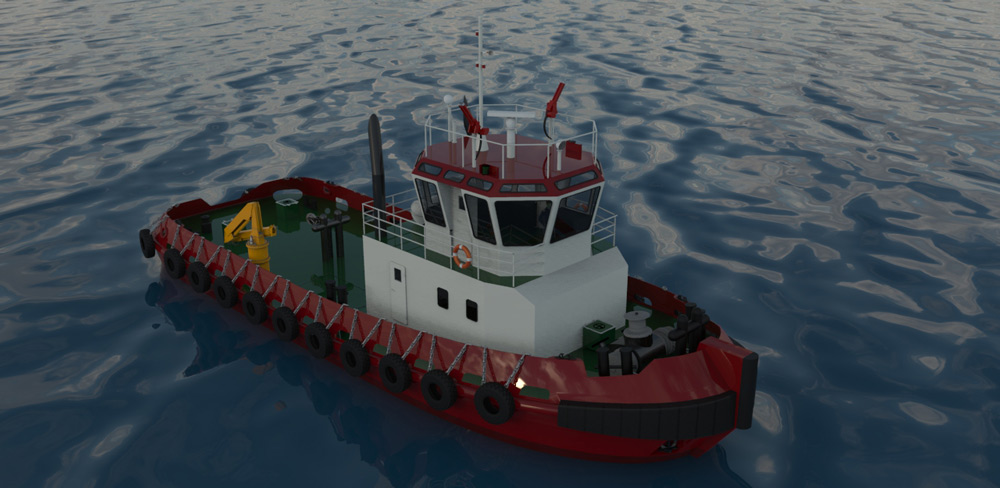

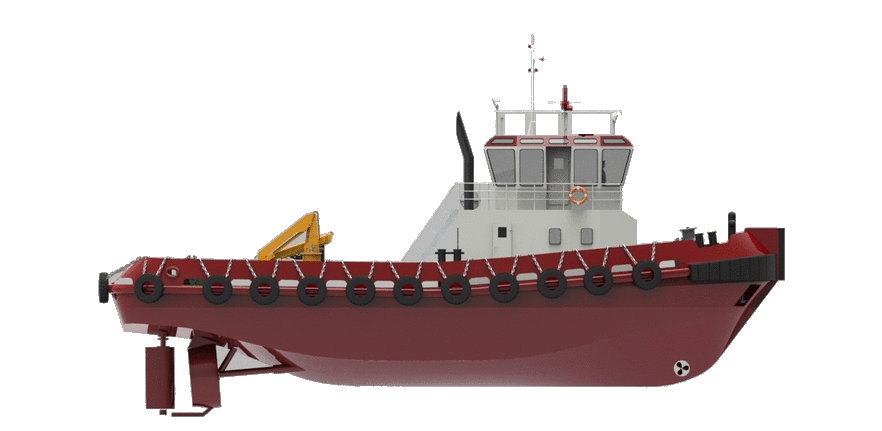

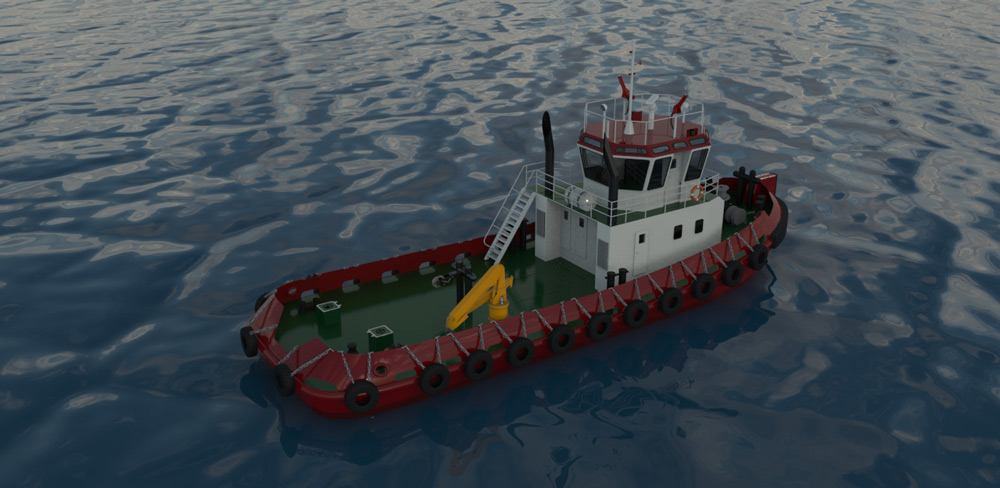

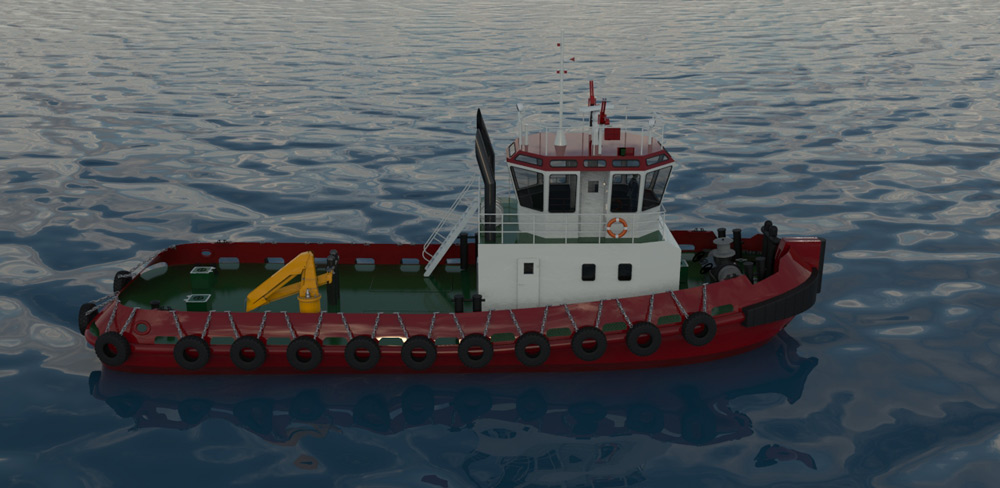

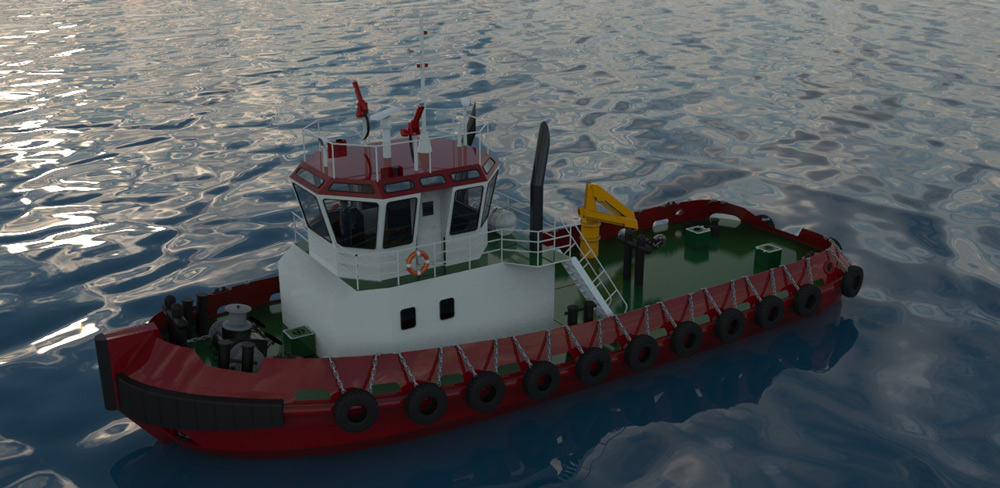

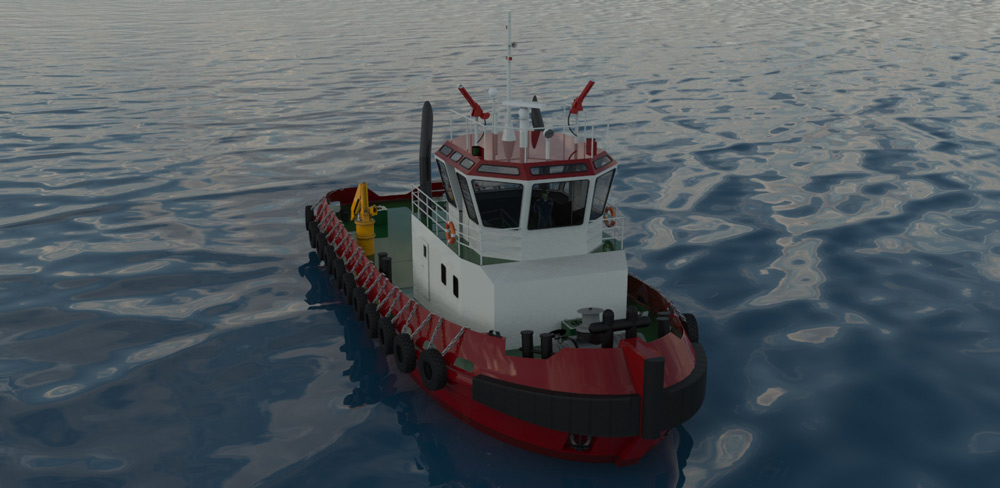

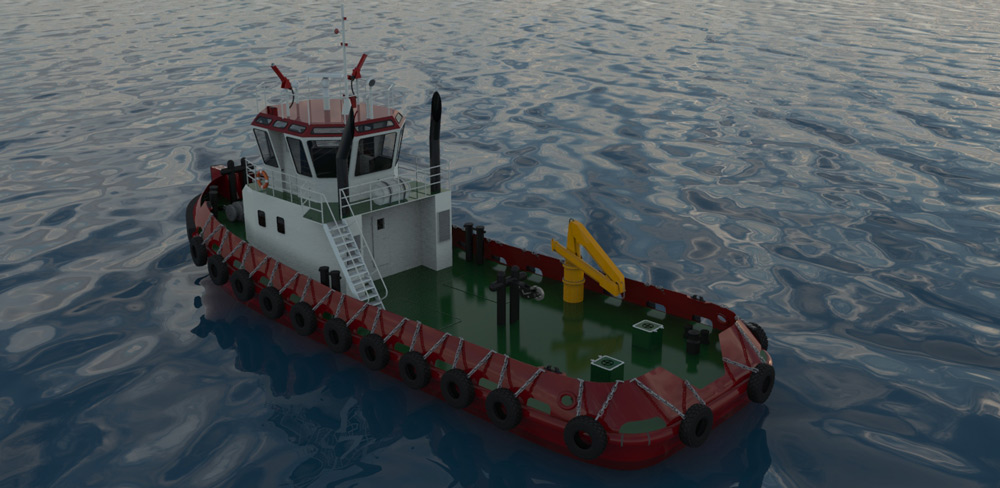

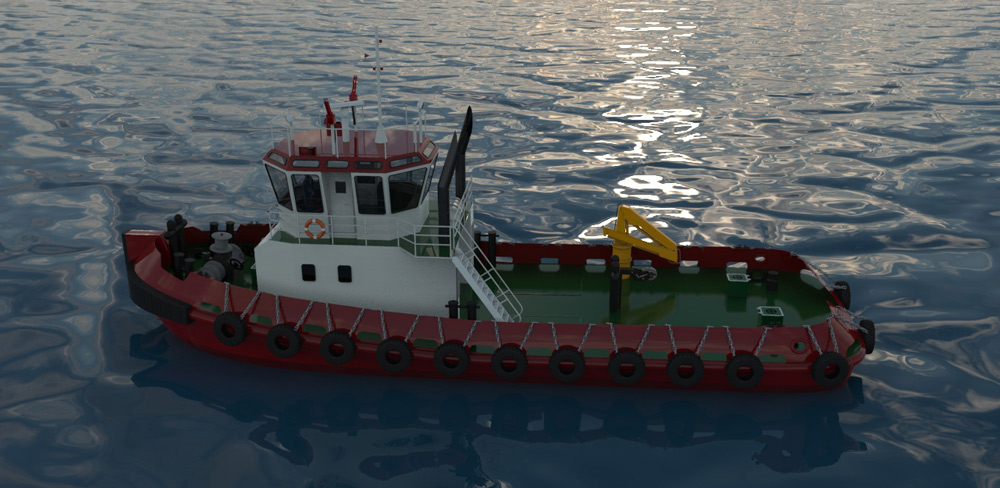

The vessel is multipurpose tug boat that is designed for towing, pushing, mooring, fire fighting and standby services. The vessel has towing winch and a towing hook, and has 45 tonnes bollard pull capacity. The vessel is driven by two 1425kW main engines and 2 Kaplan type controllable pitch propellers in nozzle.
Main Particular
| Loa | 25.23 m |
| B | 8.00 m |
| D | 3.73 m |
| d | 3.30 m |
| V | 11 knots |
| Main Engine | 2x1425 kW |
| Consumption | 16 t/day |
| Bollard Pull | 45 t |
| Propeller | 2400 mm |
| Accomodation | 4 |
Download Technical Sheet
CLASS NOTATION
BV I +Hull + Mach Tug Boat, Unrestricted Navigation
PROPULSION SYSTEM
2x 1425 kW @ 1600rpm main engines, 2x kaplan type controllable pitch propellers with 2400mm dia nozzle.
DECK EQUIPMENTS
Capstan, anchor, windlass, 45t towing winch, 65t towing hook, 500kg @ 6.5m hyd. telescopic deck crane.
ACCOMMODATION
Captain & chief eng. Cabins, 2 x crew cabins with double tiers bunk bed, galle & messroom, WC & showers, store, wheelhouse inc. console, sofa and table.
