250t Pontoon Crane
250t Pontoon Crane

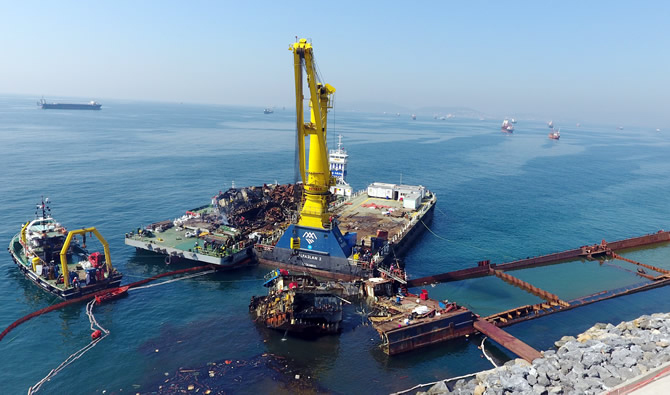

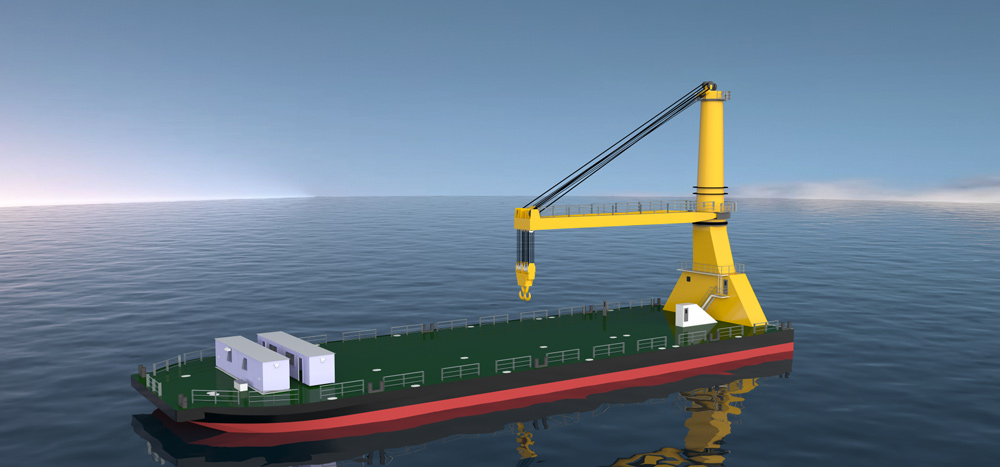

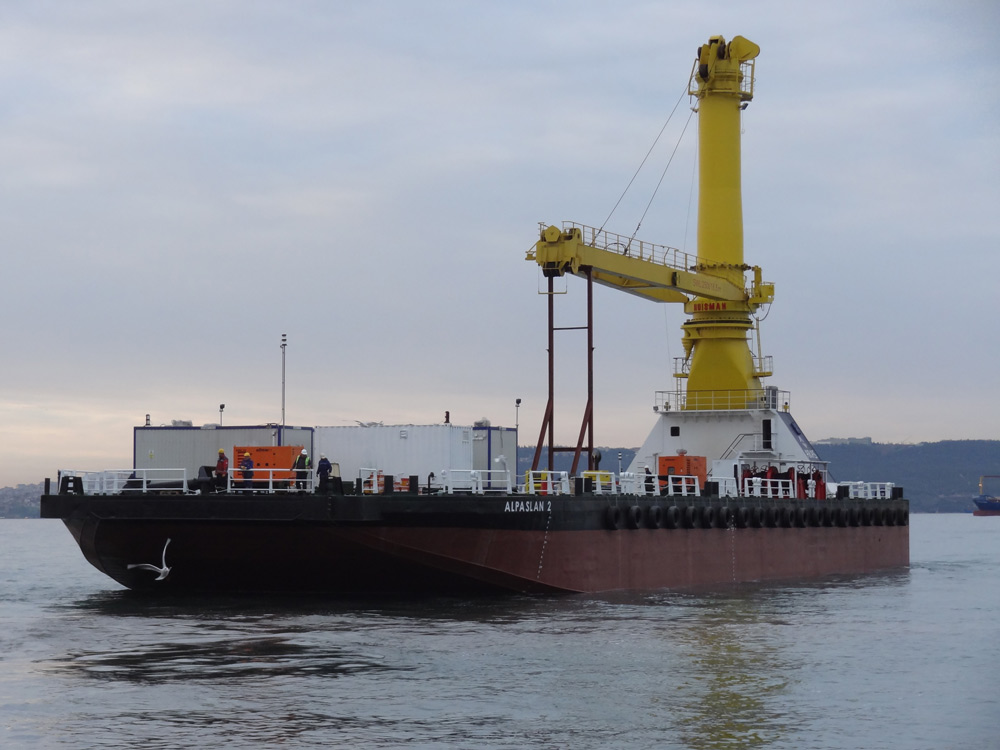

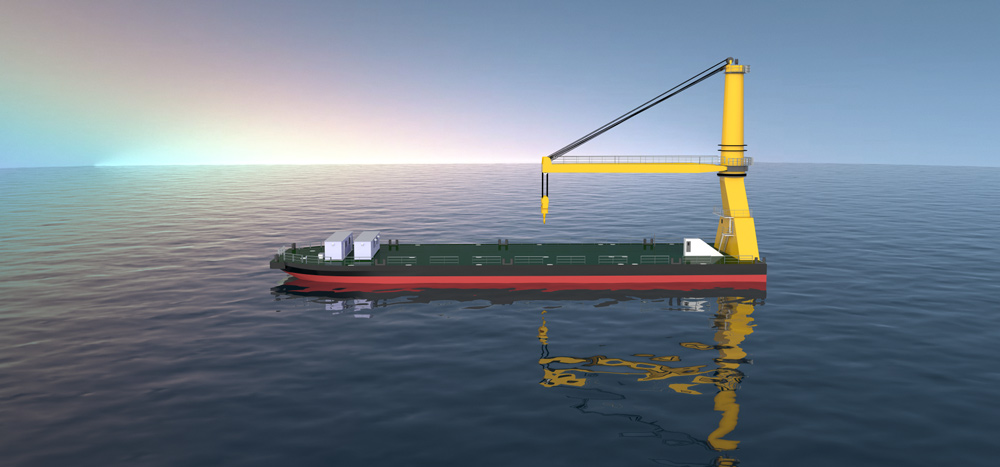

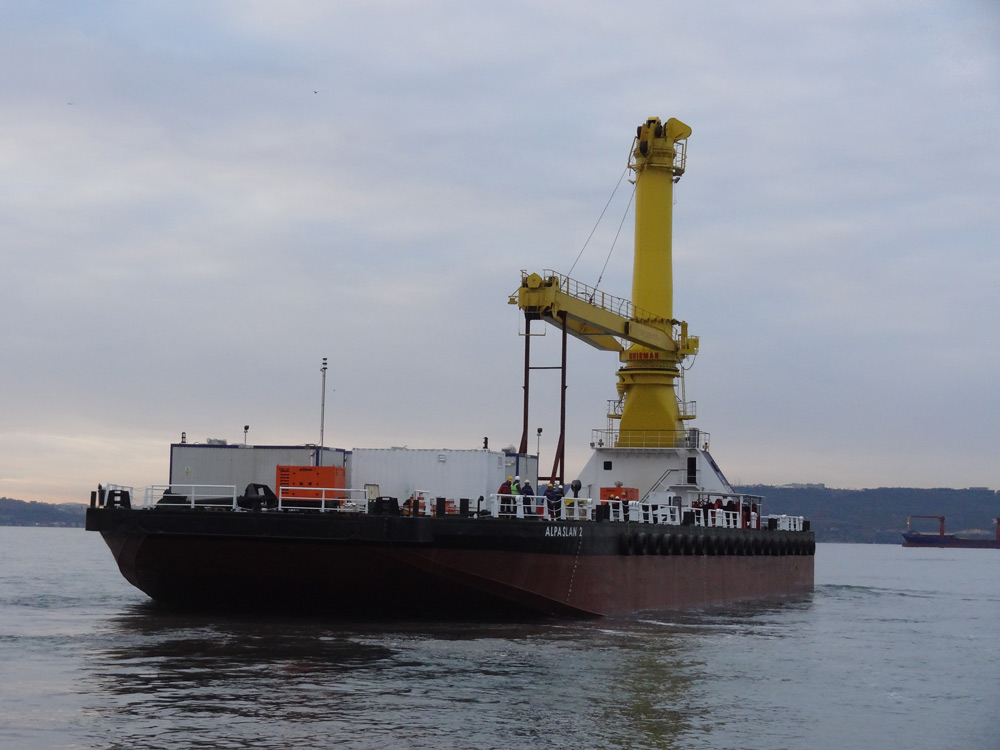

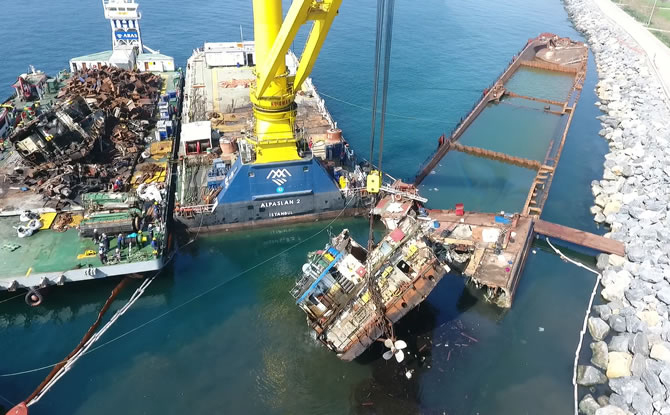

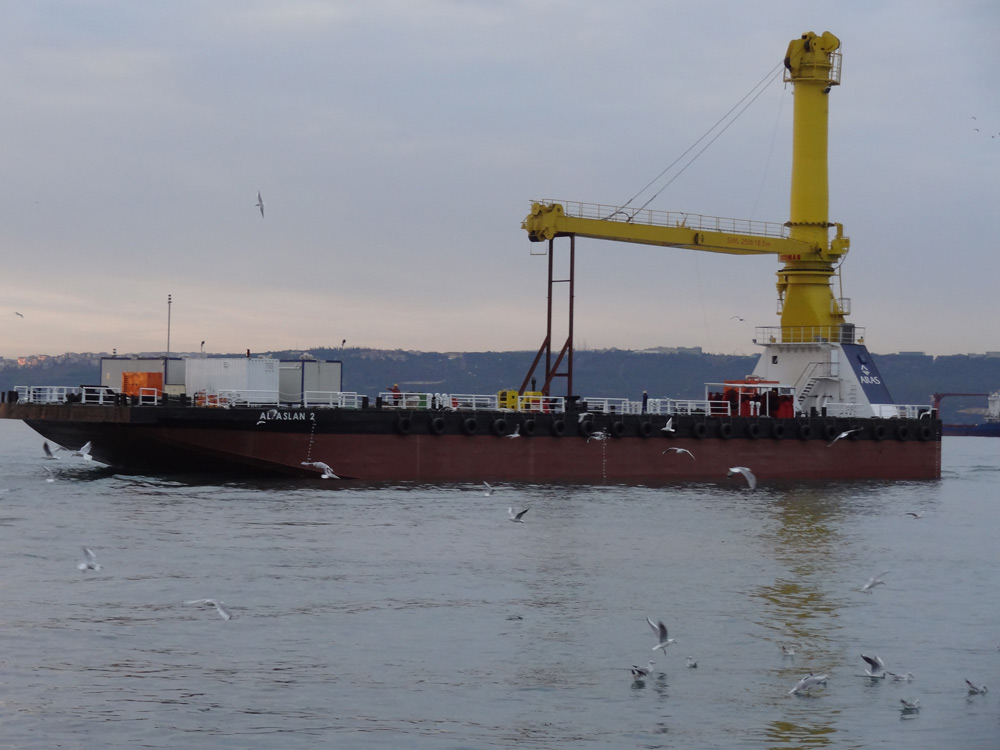

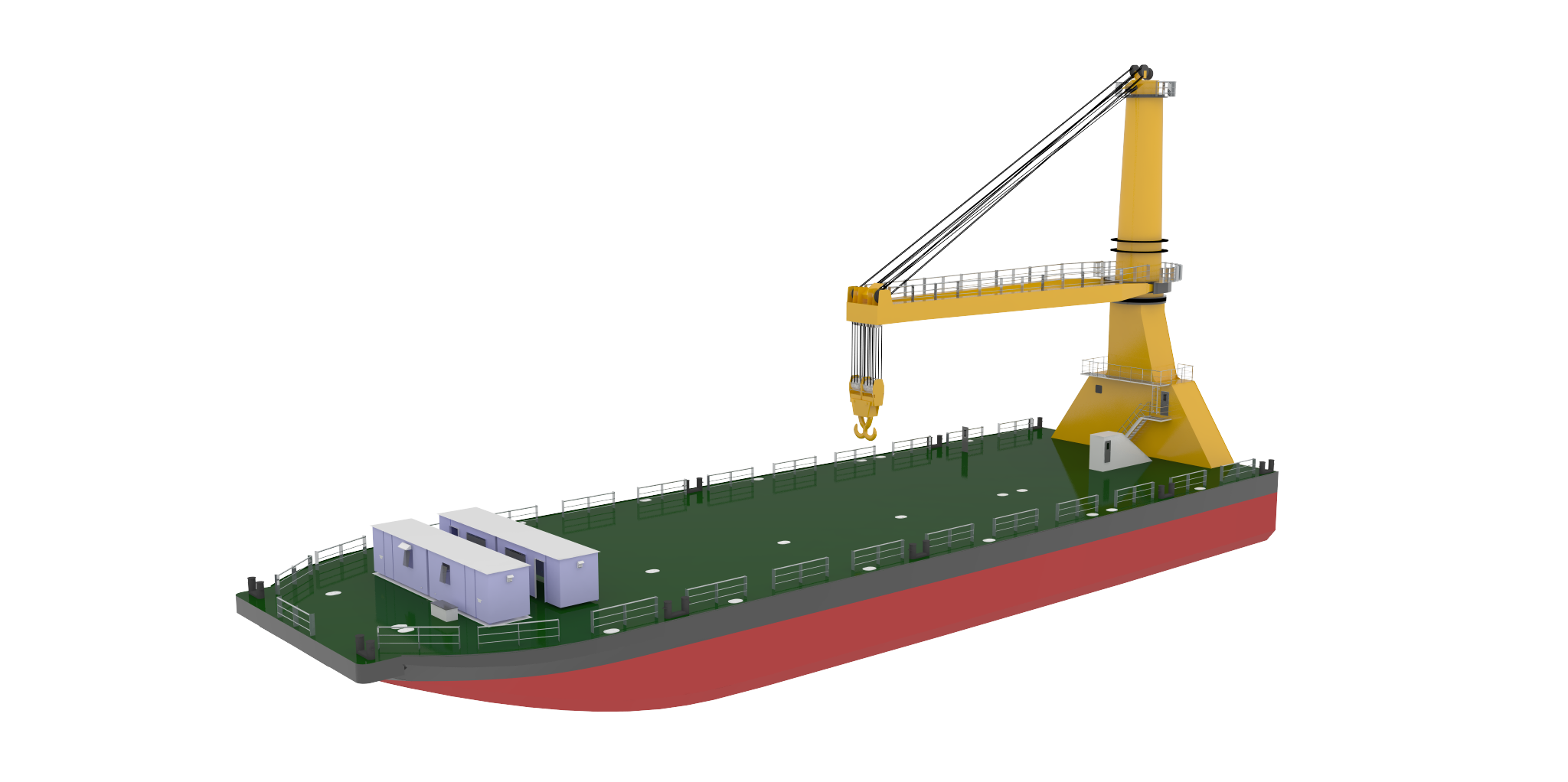

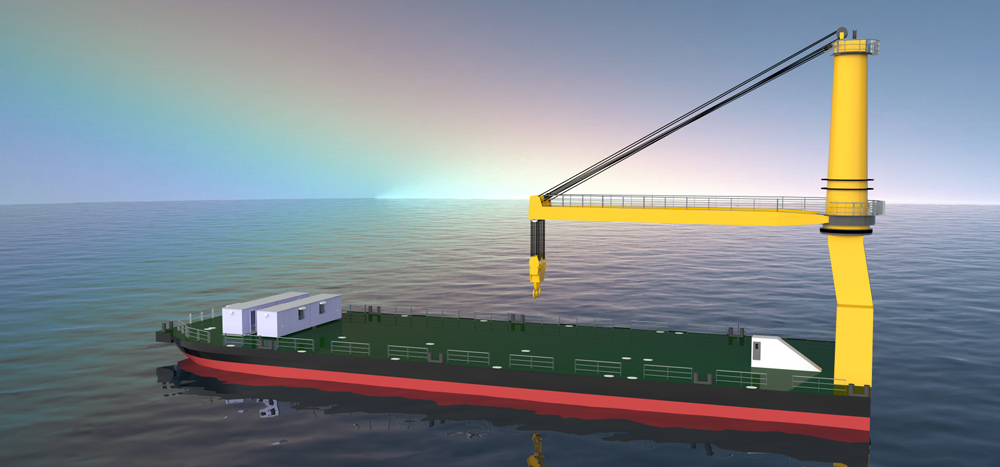

Main ParticularAlpaslan 2 is ponton crane with a lifting capacity of 250t at 18.5m. The vessel has been converted from ponton to ponton Crane for Aras Marine. The vessel has Huisman HLMC 250t Crane that Works up to 26.1m lifting arm with a 132t capacity.
| Loa | 65.22 m |
| Lbp | 63.96 m |
| B | 21.34 m |
| D | 4.88 m |
| d | 3.50 m |
| Deck Load | 8.00 t/m2 |
| Crane | HUISMAN HLMC 250t |
| V | 10 |
| Lifting Capacity (main hoist) | SWL 223t @ 5.5m SWL 250t @ 6.3m SWL 250t @ 18.5m SWL 132t @ 26.1m |
| Lifting Capacity (aux hoist) | SWL 25t |
