22m Workboat
22m Workboat

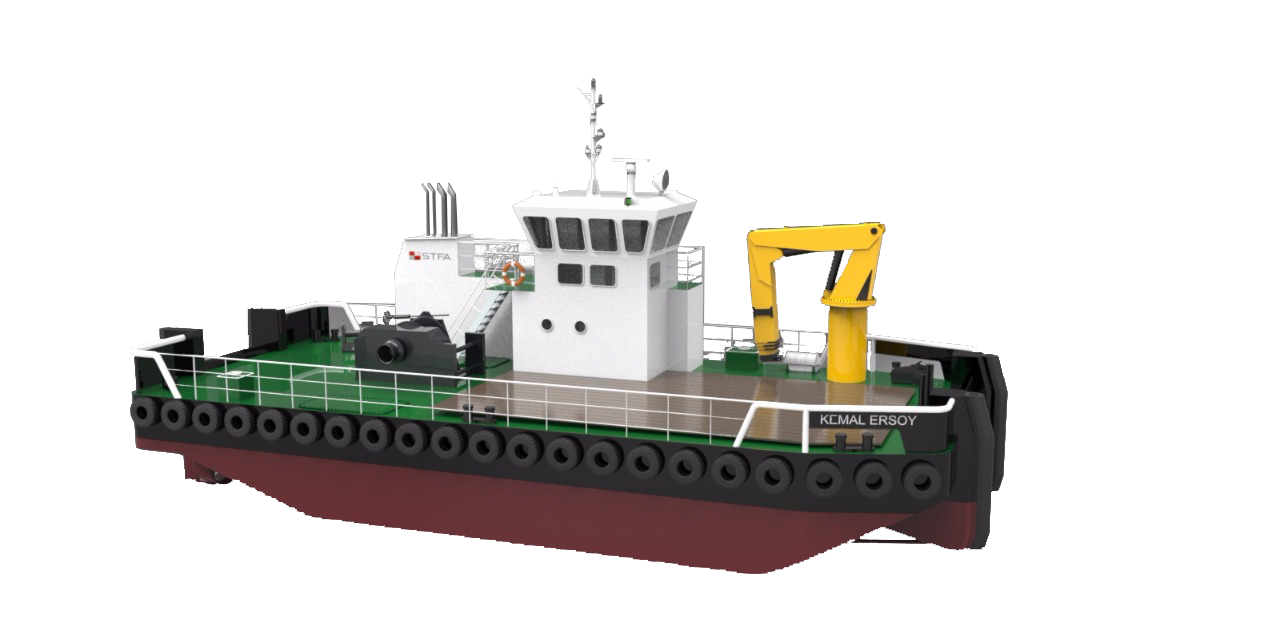

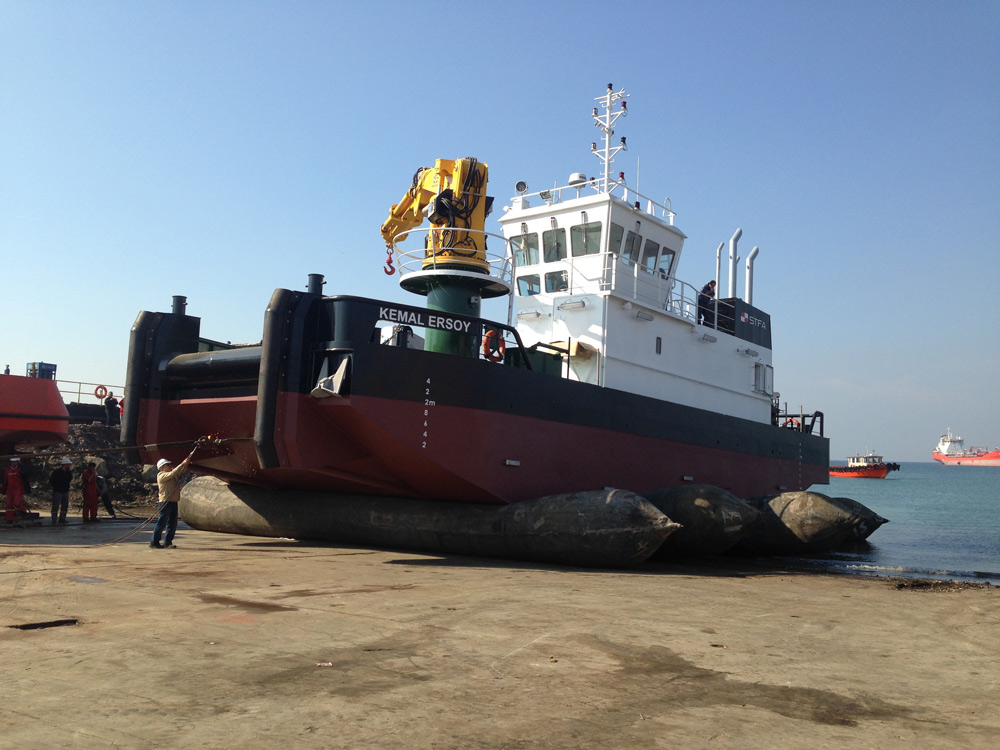

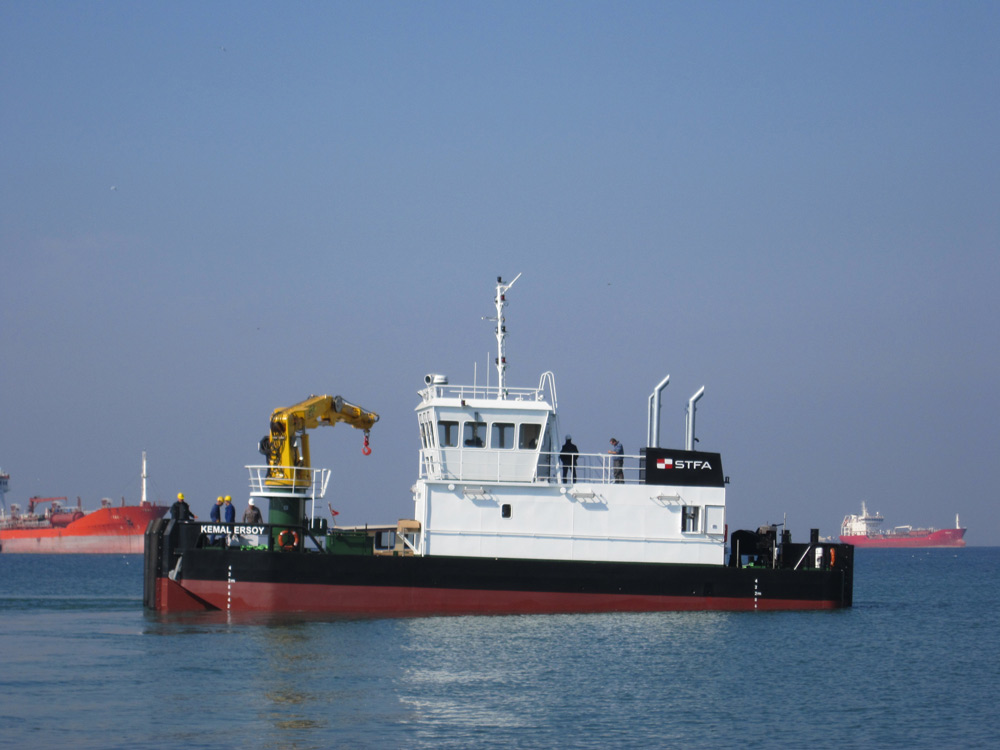

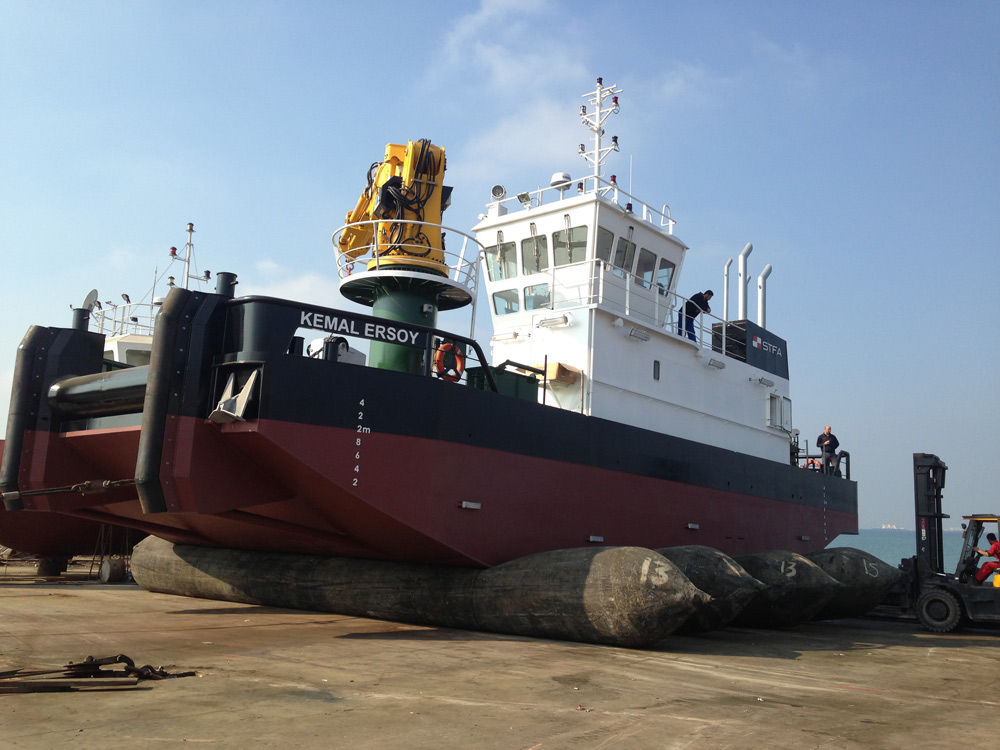

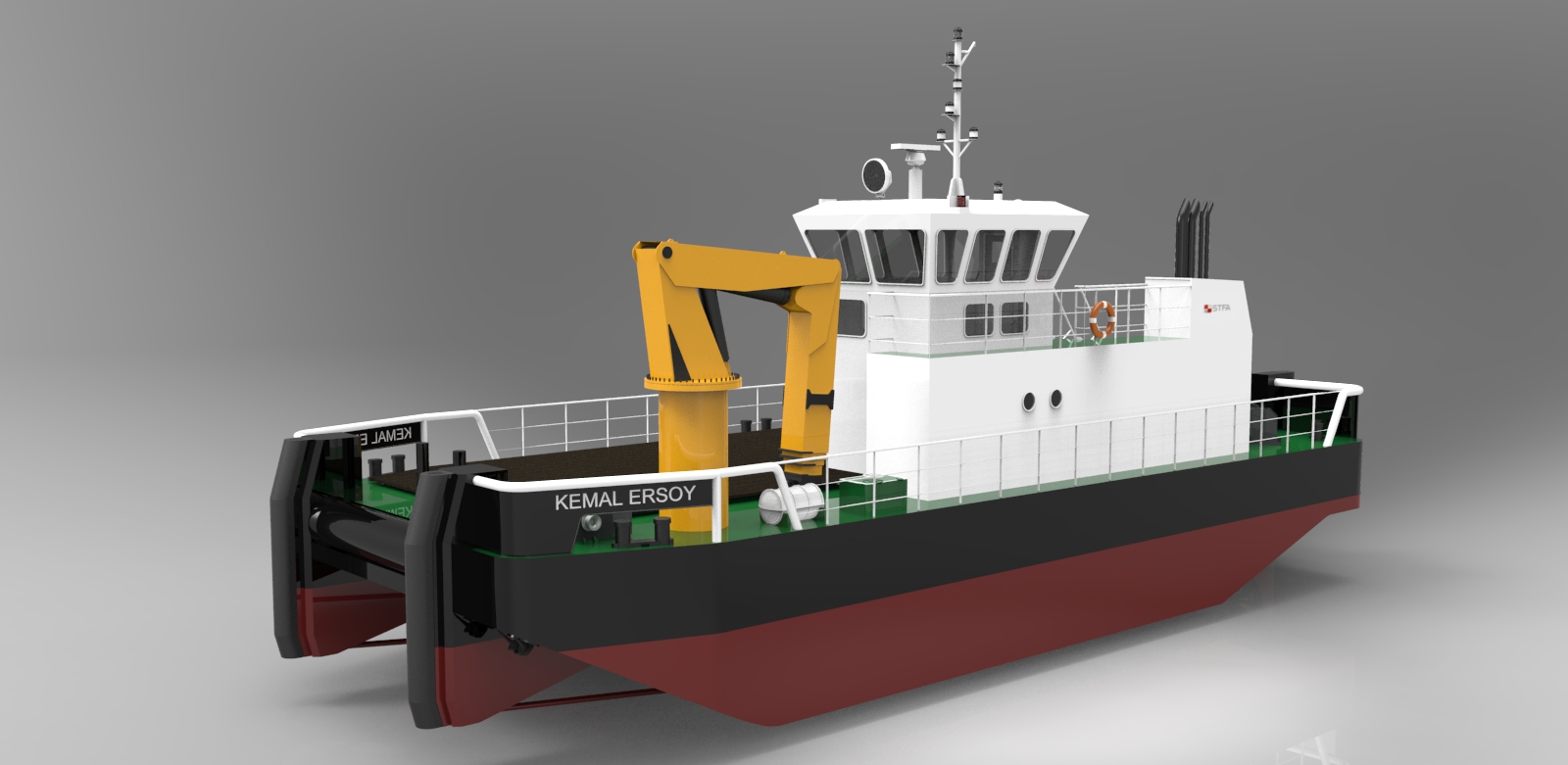

Kemal Ersoy is a multipurpose workboat, designed and built for STFA for material transport, towing, pushing , anchor handling and fuel/water supply facilities. The vessel has towing winch with a capacity of 50 tonnes and a towing hook, and has 16 tonnes bollard pull capacity. The vessel is driven by two Volvo Penta D16 main engines and 2 fixed pitch propellers in nozzle 19A.
Main Particular
| Loa | 22.30 m |
| B | 9.10 m |
| D | 2.90 m |
| d | 2.00 m |
| V | 10 knots |
| Bollard pull | 16 t |
| Main Engine | 2x552 kW |
| Endurance | 2000 nm |
| Towing winch | 50 t |
| Tugger winch | 10 t |
| Towing hook | 20 t |
| No of Crew | 6 |
Download Technical Sheet
CLASS NOTATION
Any IACS member classification society, MCA workboat code 2
PROPULSION SYSTEM

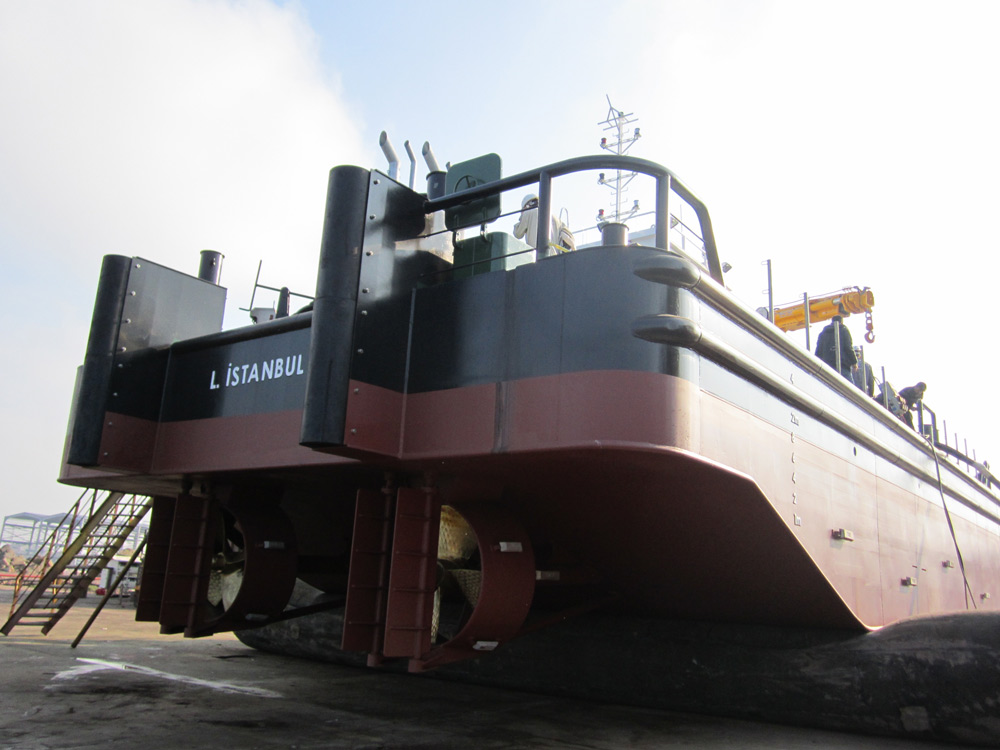

2x 552 kW main engines, 2x 4 blades FPP with 1350mm dia nozzle.
DECK EQUIPMENTS

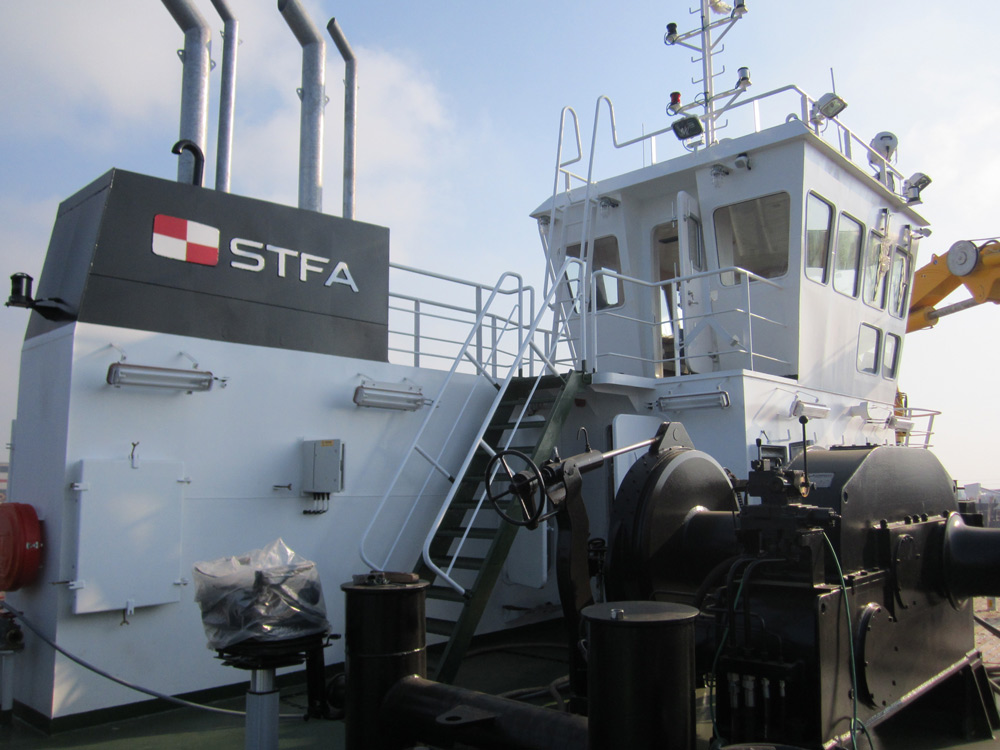

187.5kg HHP anchor, 2t electrical anchor winch, 50t hydrolic towing winch, 20t towing hook, 50t hydrolic tugger winch, 7t @ 14m hyd. knuckle boom deck crane, 70t 700mm dia 4000mm length bow roller.
ACCOMMODATION
Captain cabin, 2 x crew cabins with double tiers bunk bed, store, saloon & pantry, WC & shower, wheelhose inc. console, sofa and table.
