20m Tug
20m Tug

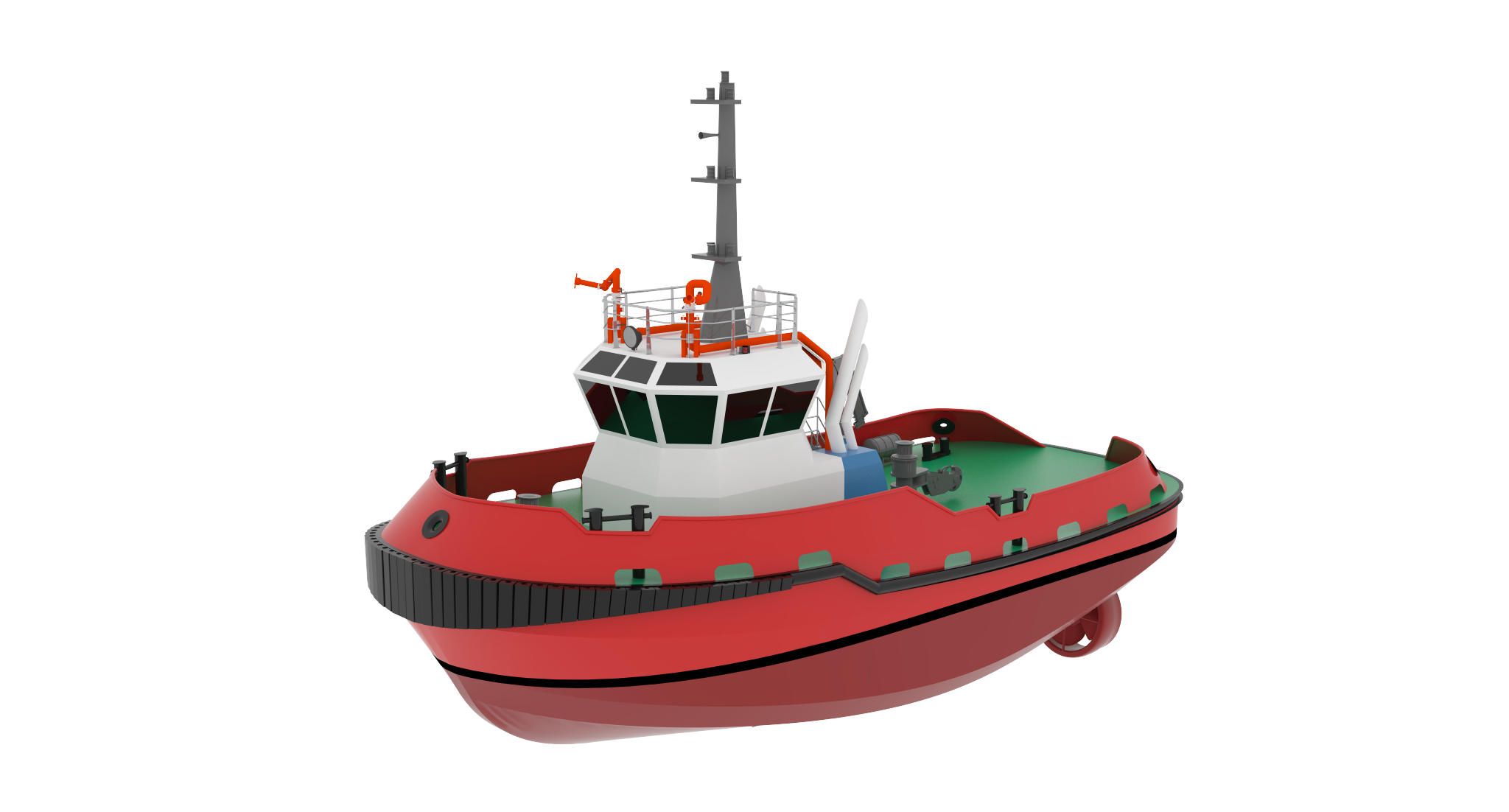

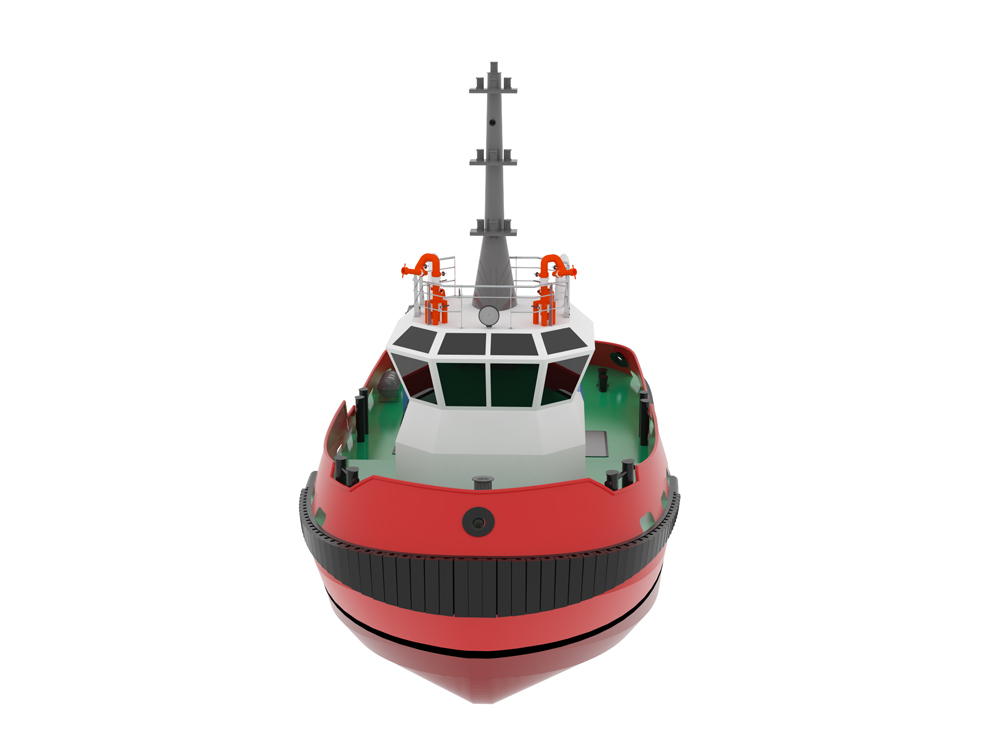

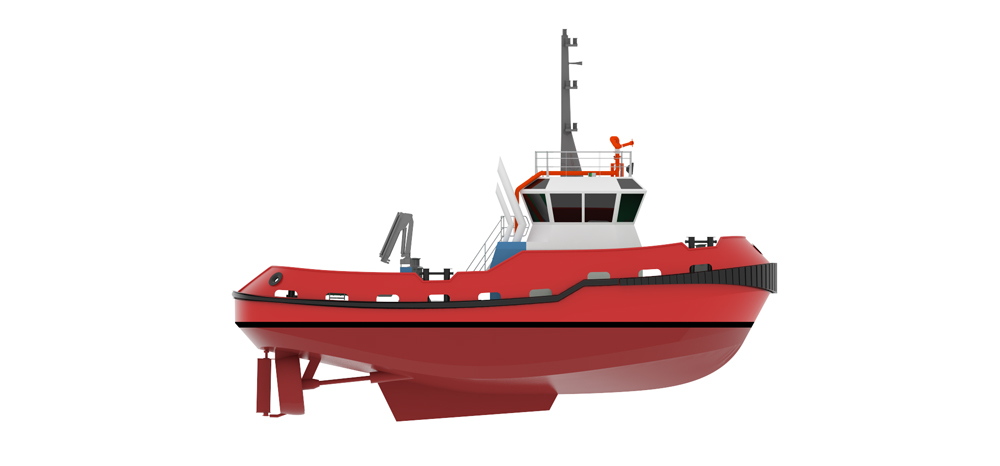

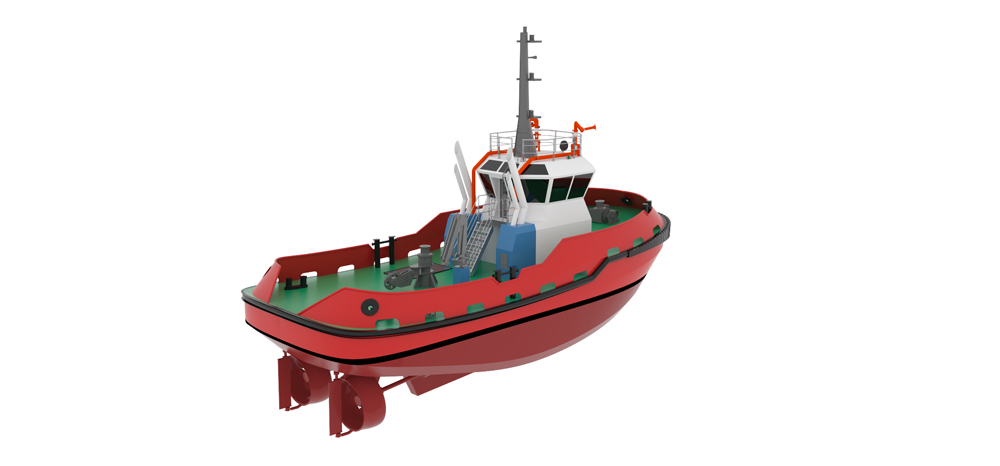

The vessel is multipurpose tug boat that is designed for towing, pushing, mooring, fire fighting and standby services. The vessel has 32 tonnes bollard pull capacity. The vessel is driven by two 900kW main engines and is designed with two options in propulsion system; 2 Kaplan type controllable pitch propellers in nozzle or 2 schottel propellers.
Main Particular
| Loa | 19.50 m |
| B | 8.40 m |
| D | 3.60 m |
| d (from BL) | 2.30 m |
| d aft (from propeller) | 3.30 m |
| Main Engine | 2x900 kW |
| V | 12 |
| Bollard Pull | 32 t |
| HFO | 25 m3 |
| Accomodation | 4 |
CLASS NOTATION
Any IACS member classification society, +Hull, + Mach, Tug boat, unrestricted navigation.
PROPULSION SYSTEM

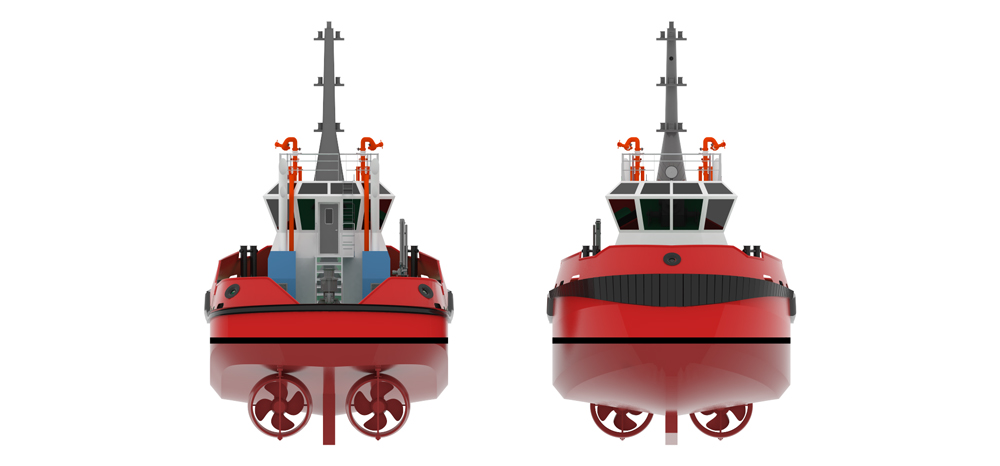

2x900 kW main engines, 2kaplan type CPP propellers or 2 schottler propellers.
DECK EQUIPMENTS
2x anchors, windlass, towing hook, hyd. telescopic deck crane.
ACCOMMODATION
2x crew cabins with double tiers bunk bed, galley & messroom, WC & shower, store, wheelhouse inc. console.
