18m Pilot Boat
18m Pilot Boat

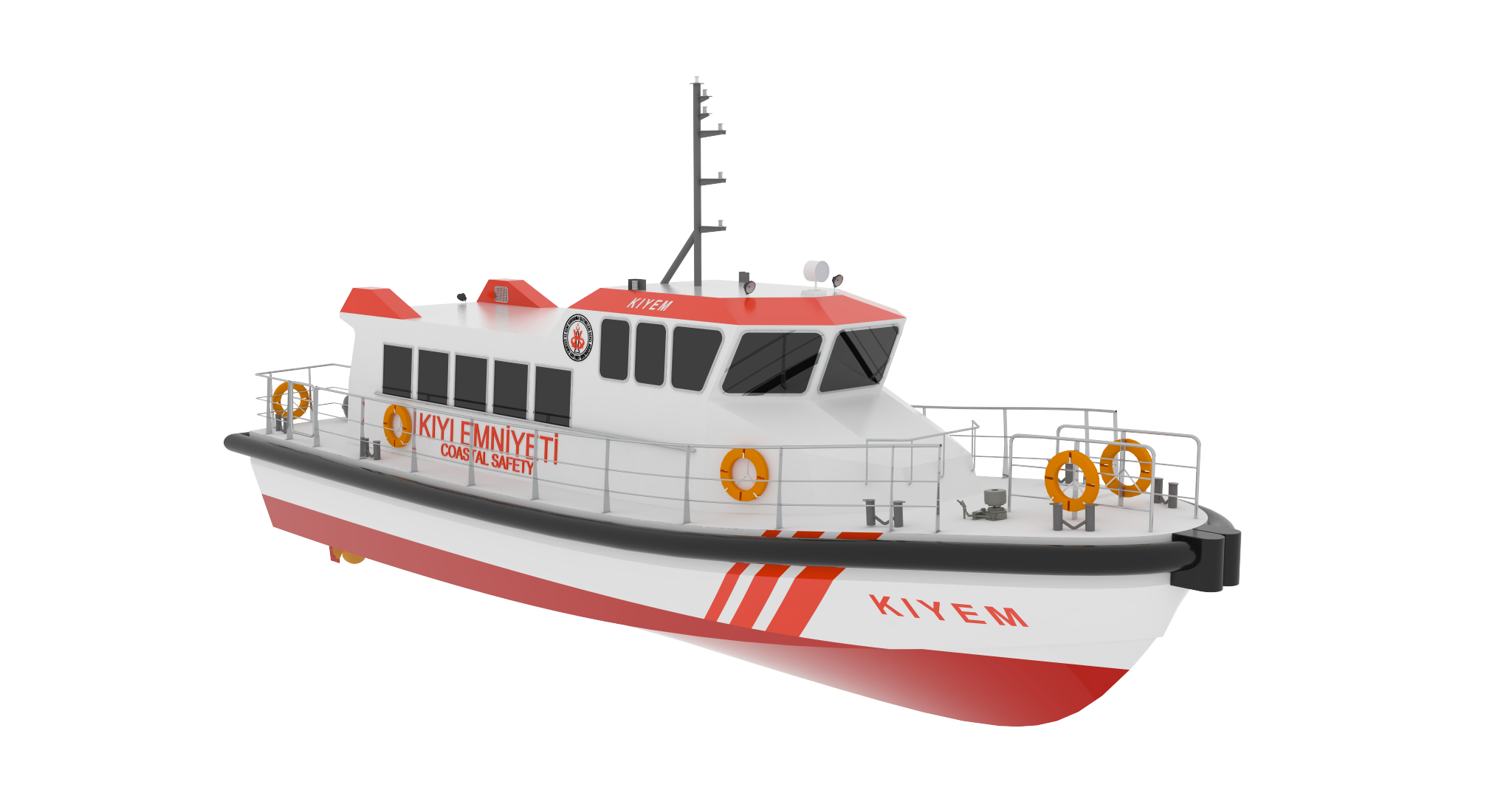

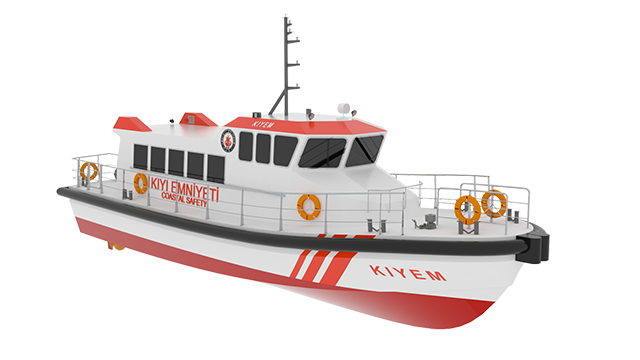

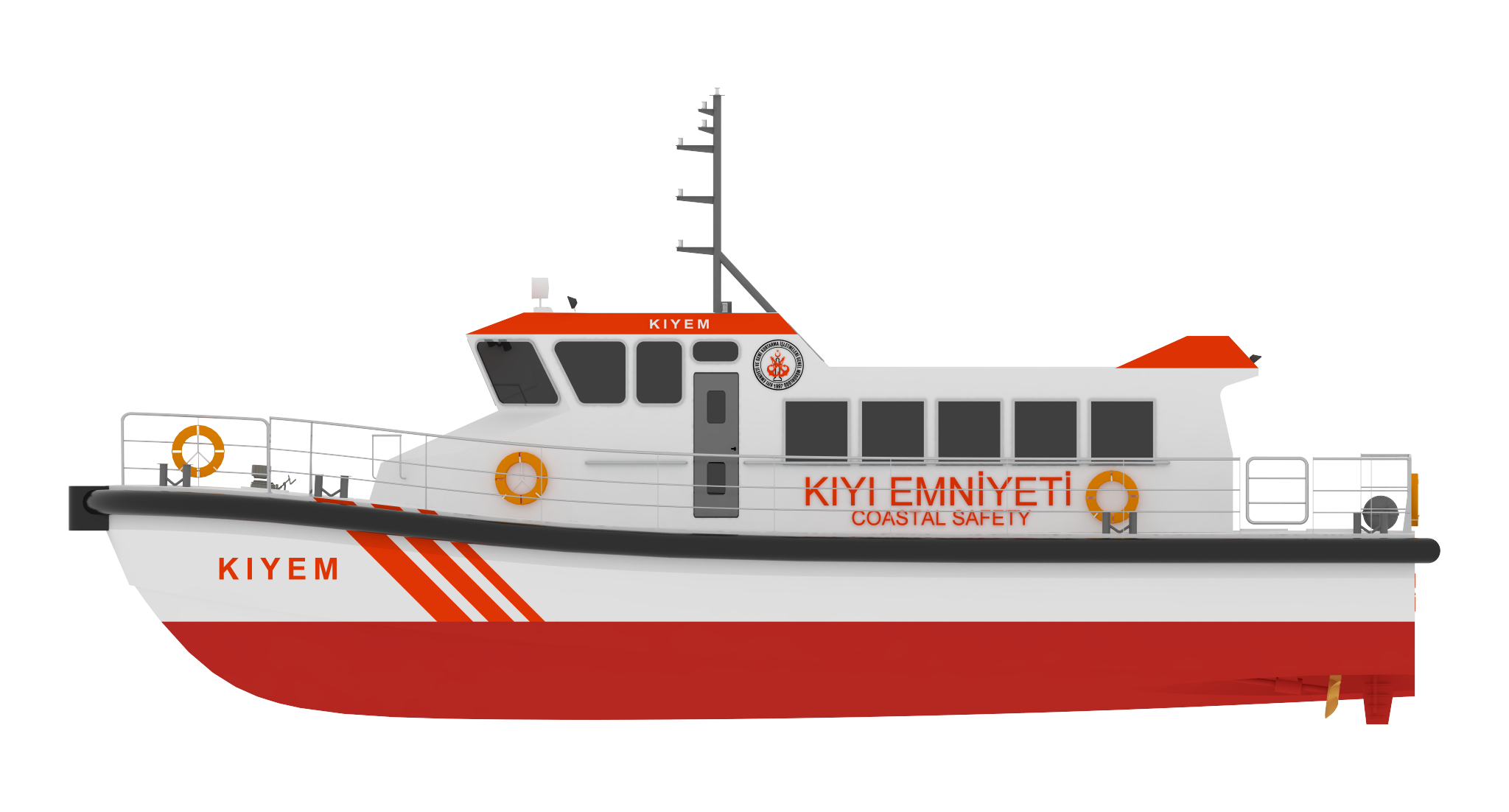

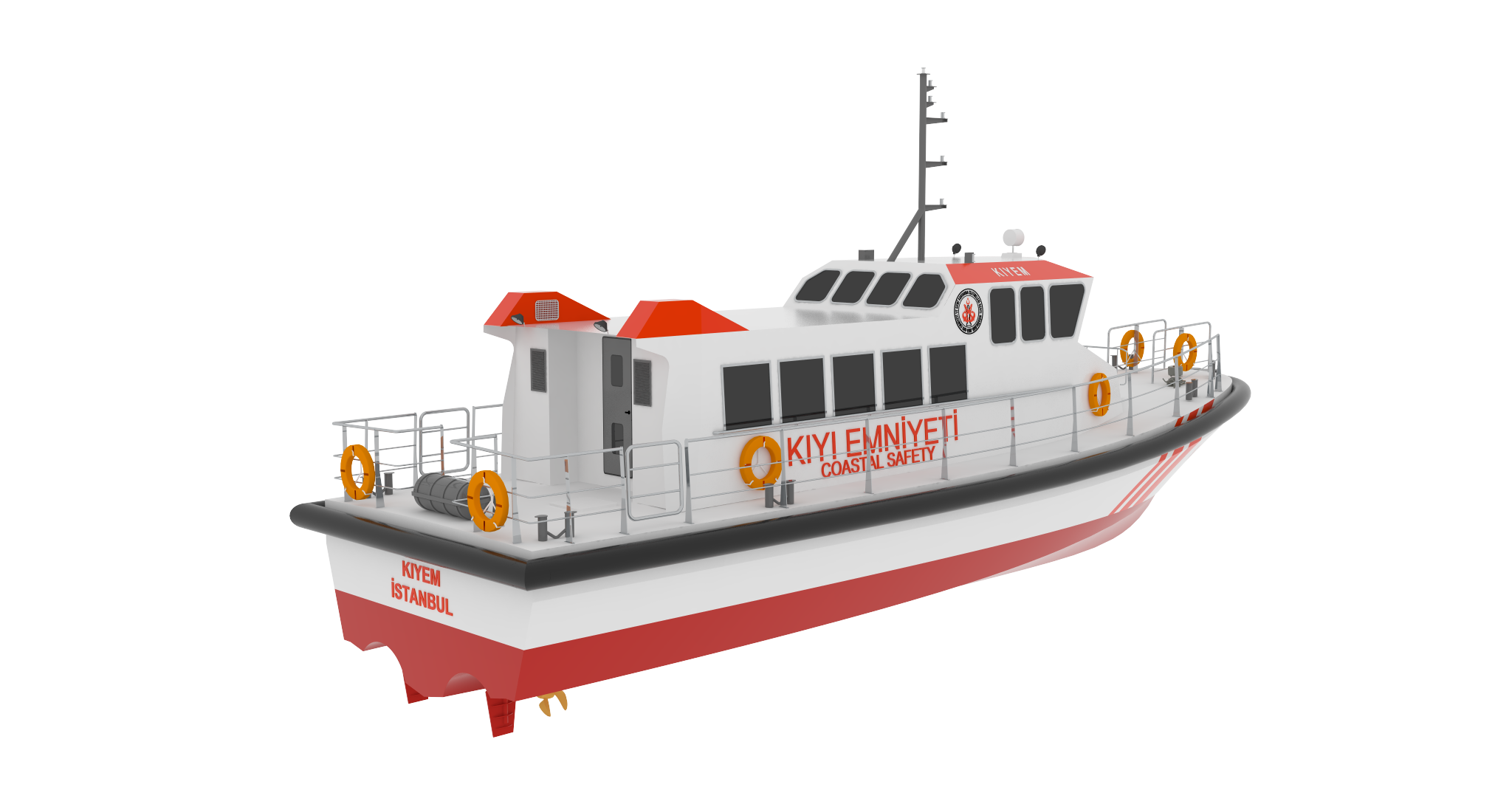

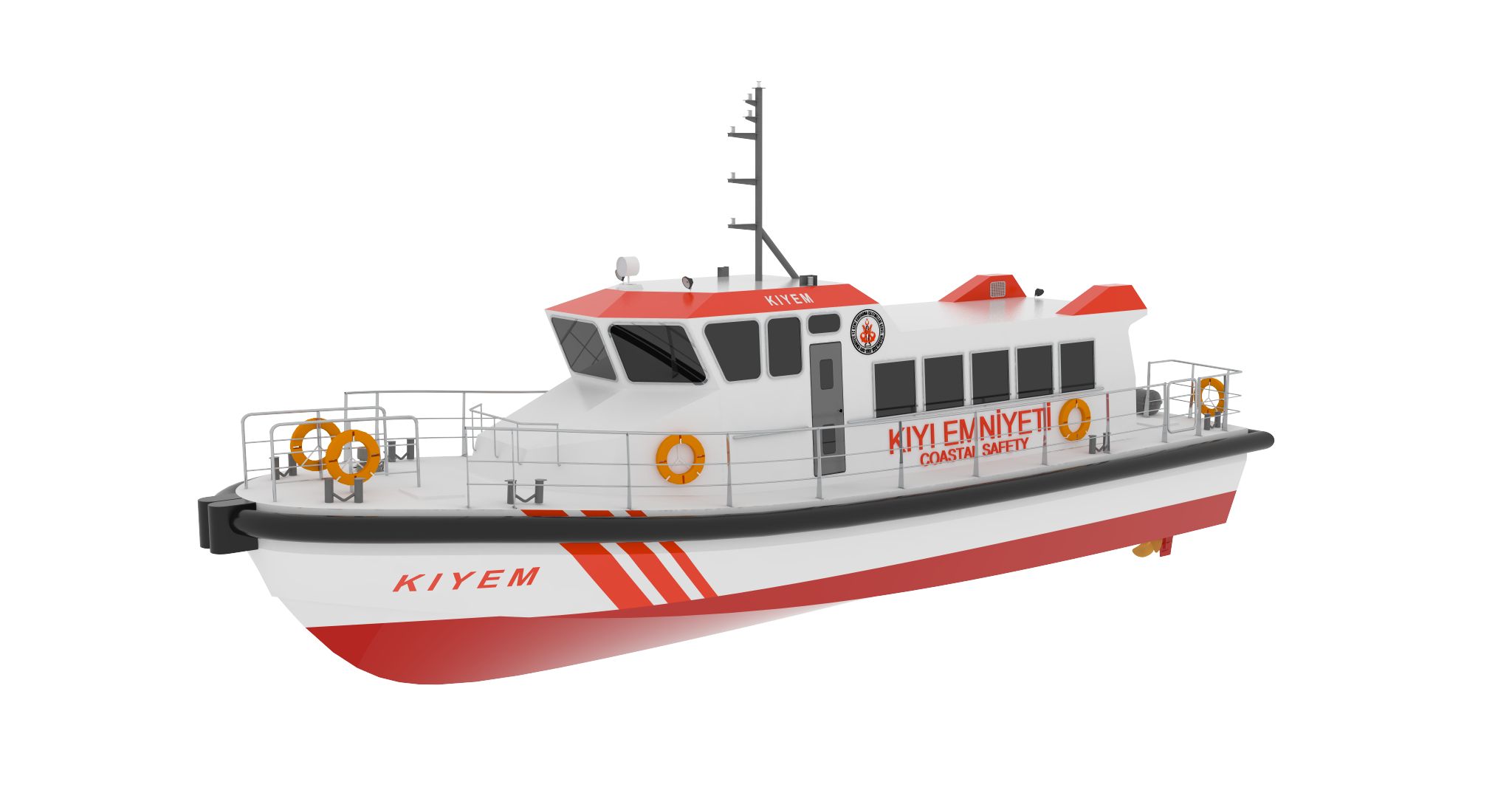

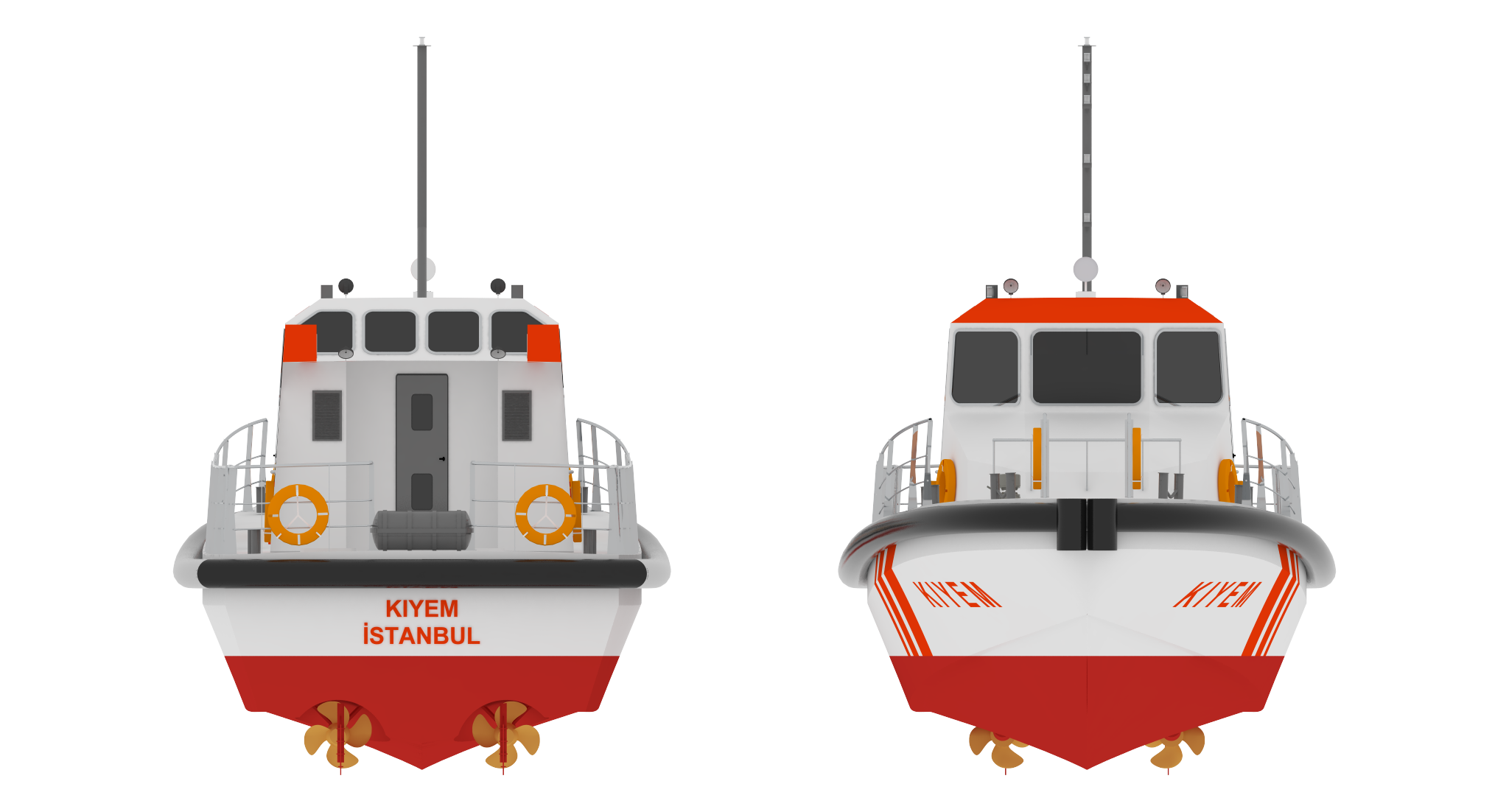

18m Pilot Boat is designed for Coastal Safety. The hull material is marine type alluminum alloy. (5083 H321). The vessel is driven by twin Scania DI16 72M main engines, each 700 BHP and can achieve a speed of 20 knots. The vessel can operate up to the wave height of 3 meters.
Main Particular
| Loa | 17.95 m |
| Lwl | 17.10 m |
| B | 5.30 m |
| D | 2.65 m |
| d | 1.15 m |
| Hull Material | Al. Alloy |
| Main Engine | 2x600 BHP |
| V | 20 Knots |
| Range | 300 Miles |
| Do | 400 LT |
| No of Pax. | 20 |
| No of Crew | 4 |
CLASS NOTATION
+1A15 L2 TR-Domestic Service HSDE Aluminium Service Boat, SPS +M R
PROPULSION SYSTEM
2x700 HP @ 2100rpm main engines, 2 x 1000mm dia fixed pitch propeller.
CAPACITIES
400lt diesel oil, 200lt fresh water.
ACCOMMODATION
Messroom, Galley and WC for 4 crews, passanger saloon for 20 pax(pilot).
