1600ton Pontoon Crane
1600ton Pontoon Crane

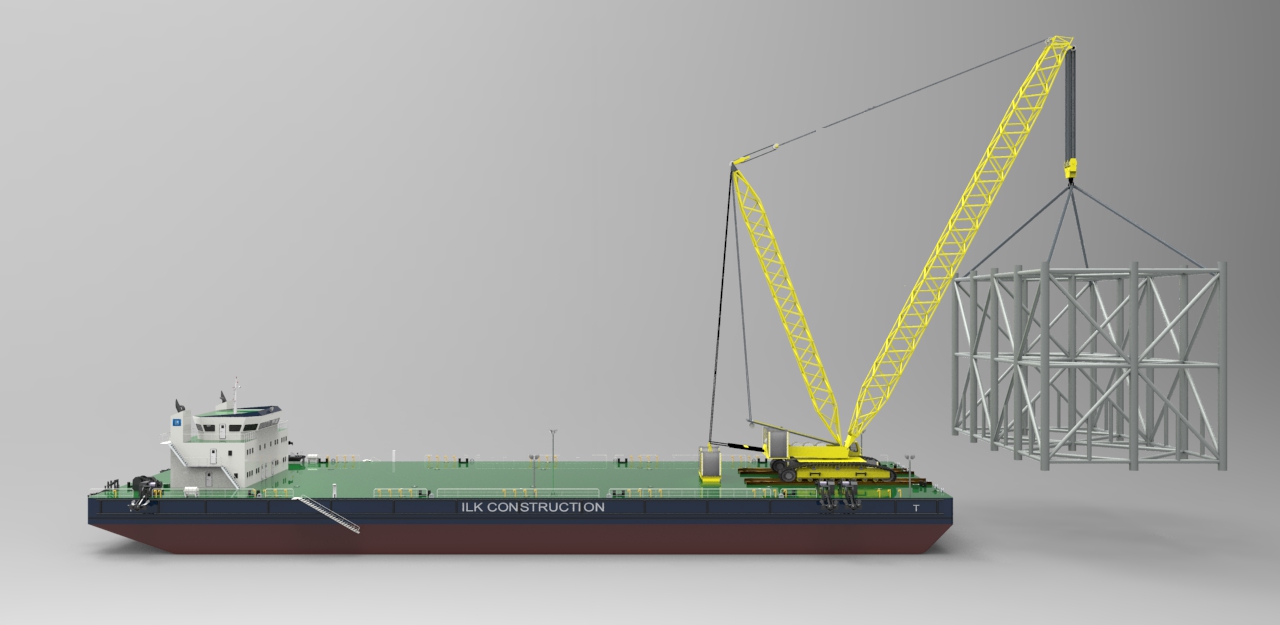

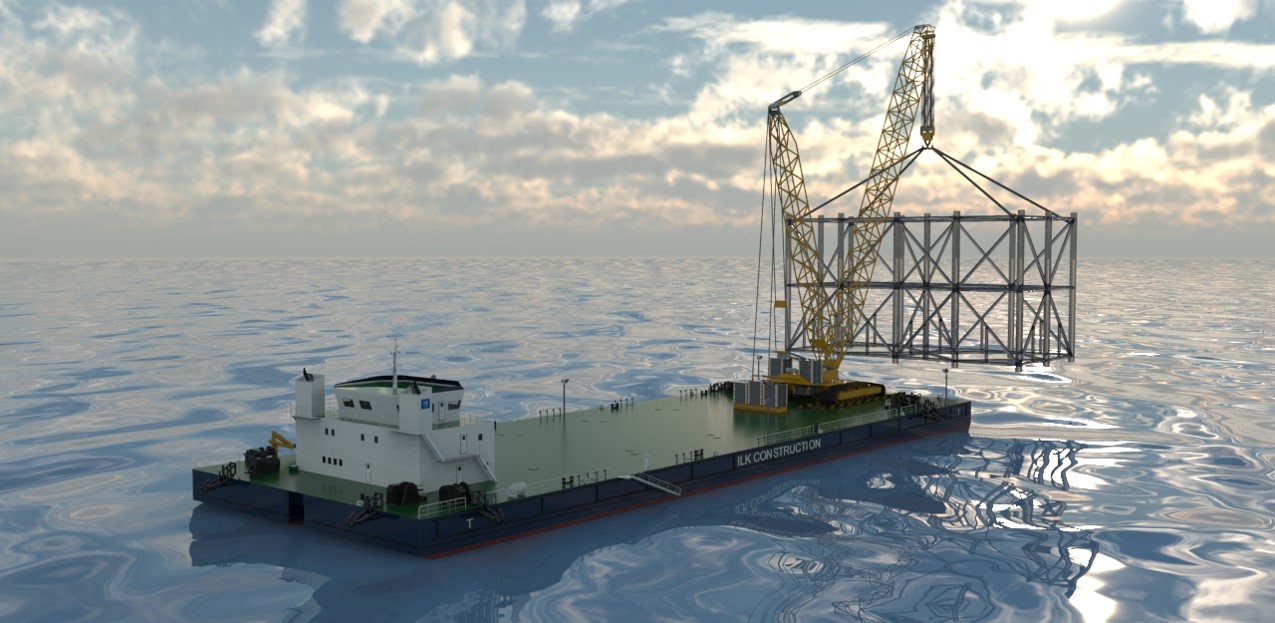

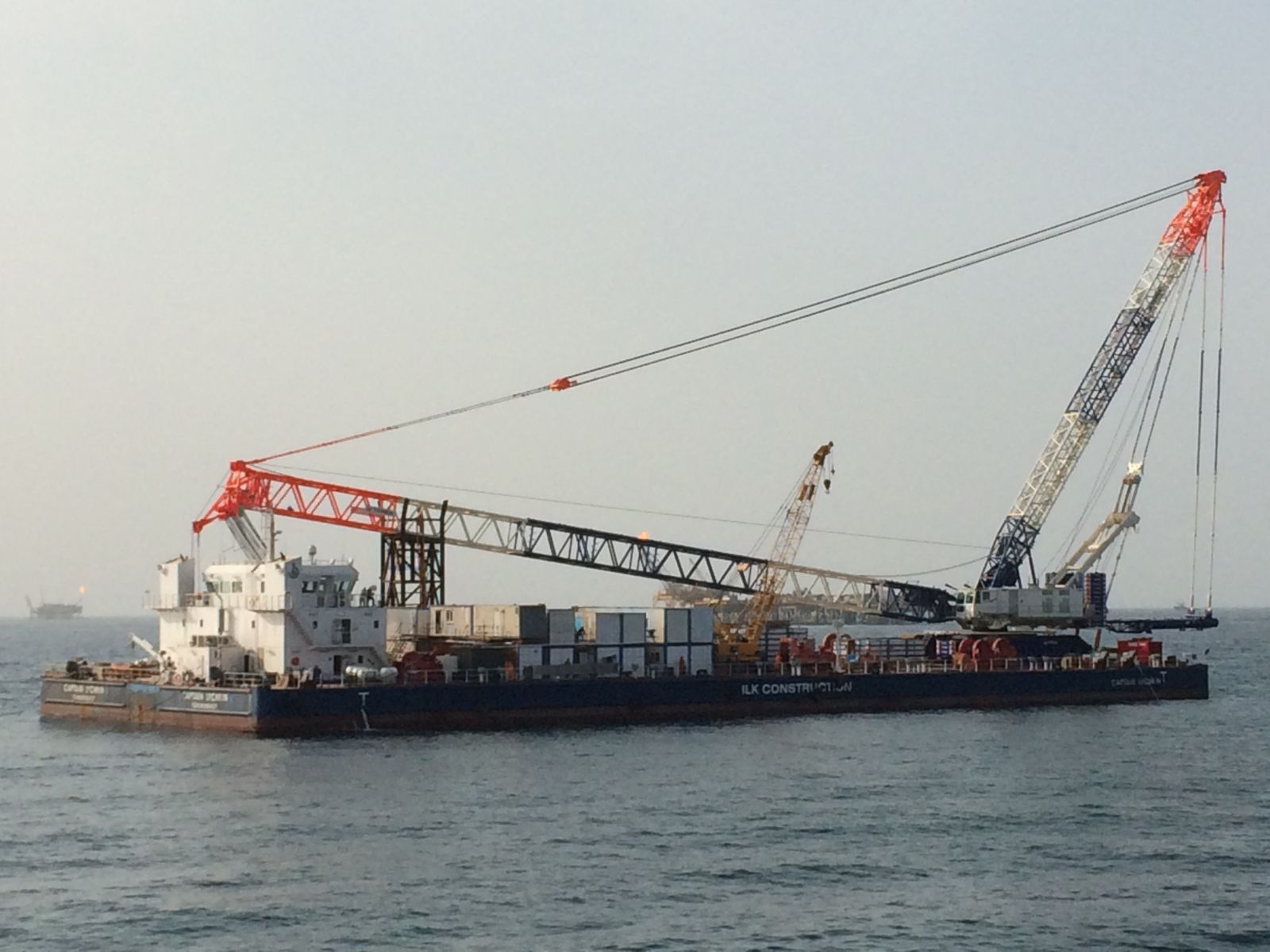

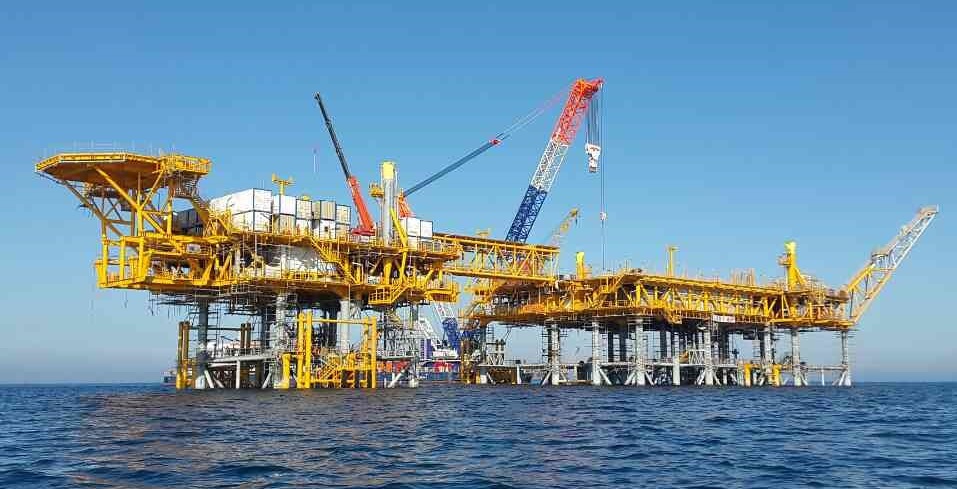

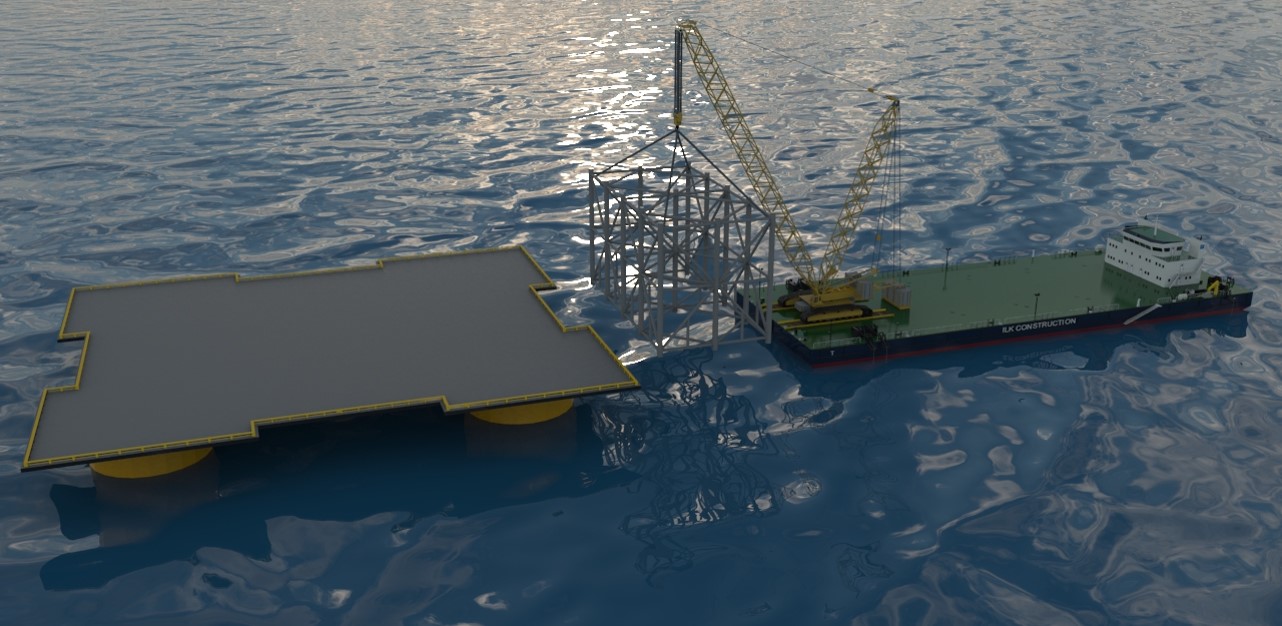

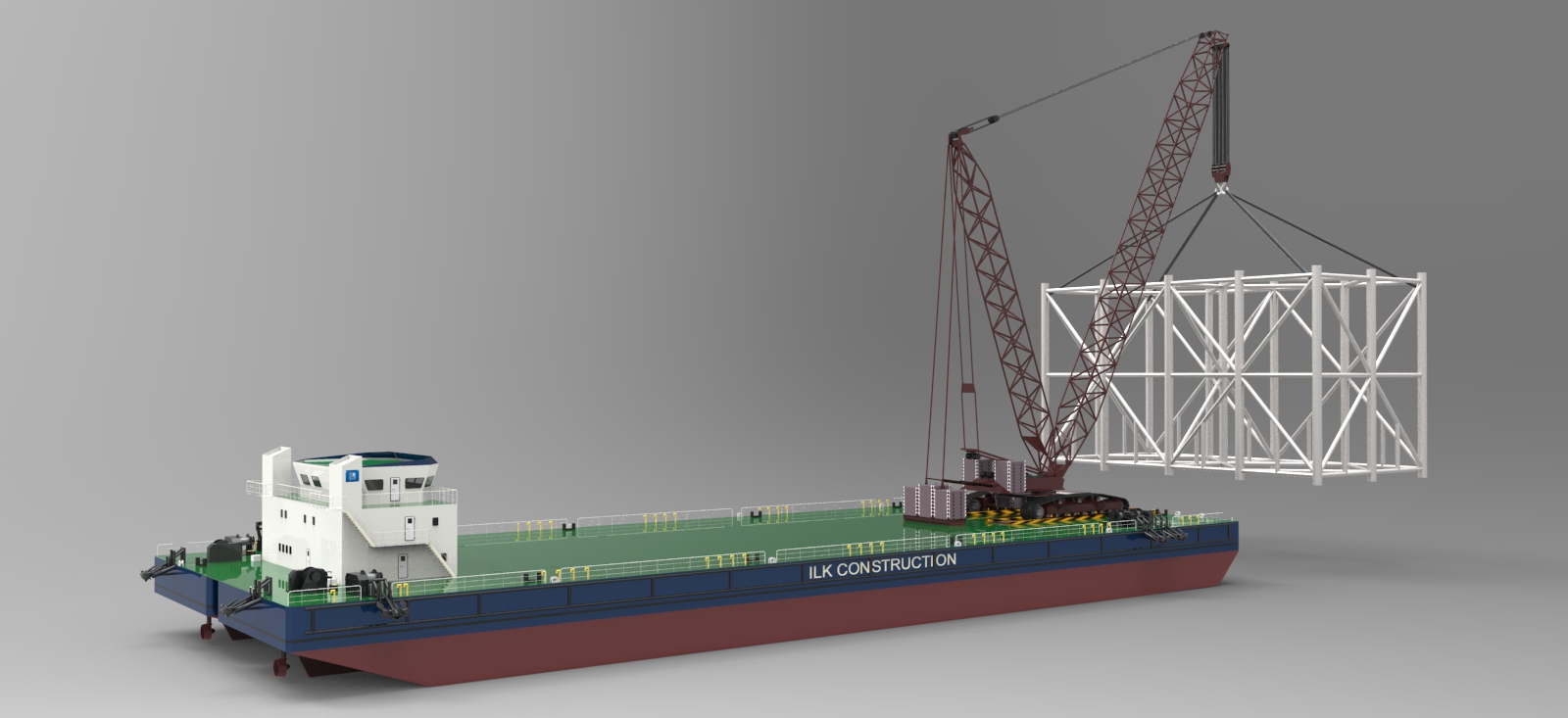

Captain Lychkin is 99.60m pontoon Crane, designed for Ilk Construction as catamaran type pontoon. The ponton is working in Caspian Area for the the construction of th oil and gas platfroms. The vessel has lifting capacity of 1600tons by Terex CC8800-1 Crane. The vessel has eight point mooring cpability to maintain position during operation.
Main Particular
| Loa | 99.60 m |
| Lwl | 99.60 m |
| B | 35.00 m |
| D | 6.45 m |
| d | 4.50 m |
| Deck Load | 20 t/m2 |
| Class | BV |
| Accomodation | 17 |
| Crane | Terex CC8800-1 |
| Capacity | 1600t @ 10m |
| Superstructure | 17 persons |
Download Technical Sheet
CLASS NOTATION
BV+Hull, +Machinery, Ro-Ro Passenger Ship, Coastal Area
DECK EQUIPMENTS
BV+Hull, +Machinery, Ro-Ro Passenger Ship, Coastal Area
AUX MACHINES
2x550 kW diesel generator, 1x99 kW emg. Generator, 4 hyd power unit, service pumps, ballast pumps and anti heeling pump.
ACCOMMODATION
5 officer cabins, 4 crew cabins, galley, provision, messroom, meeting room, divers room, deck store, laundry, wheelhouse inc. console, chart room and radio station.
