15m Pilot Boat
15m Pilot Boat

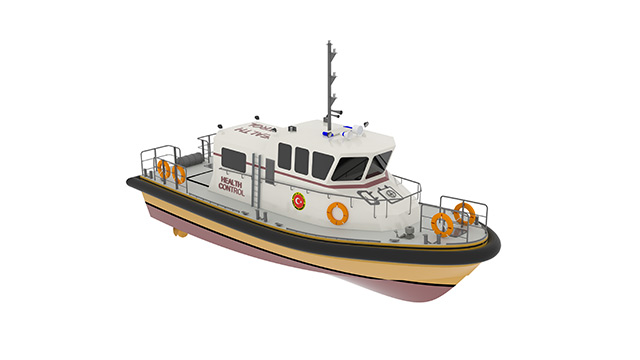

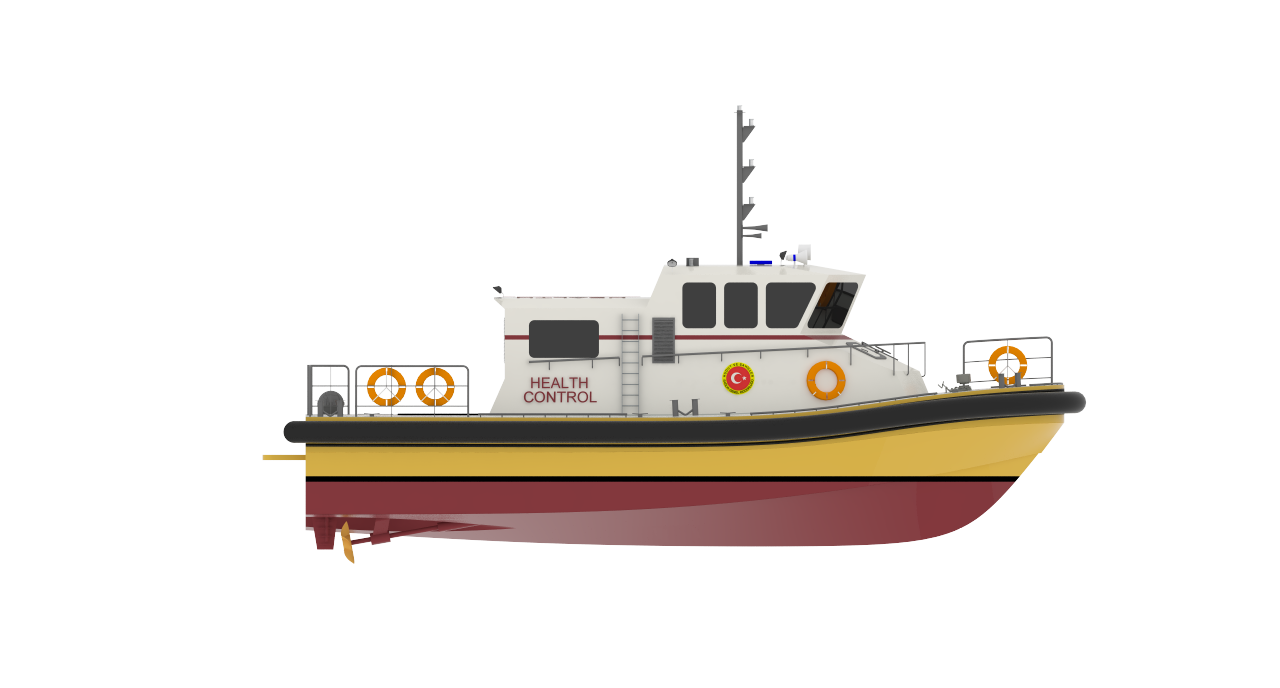

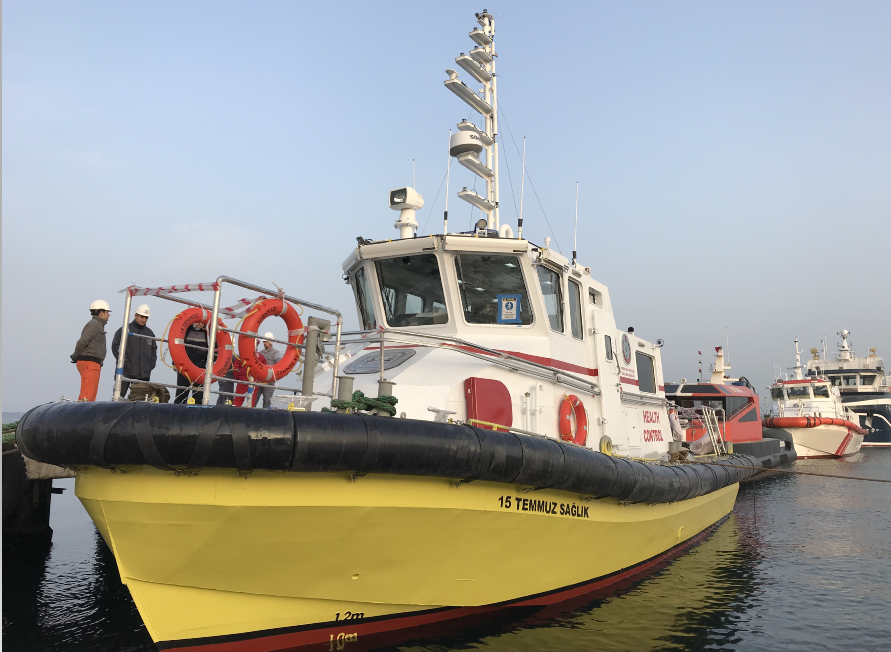

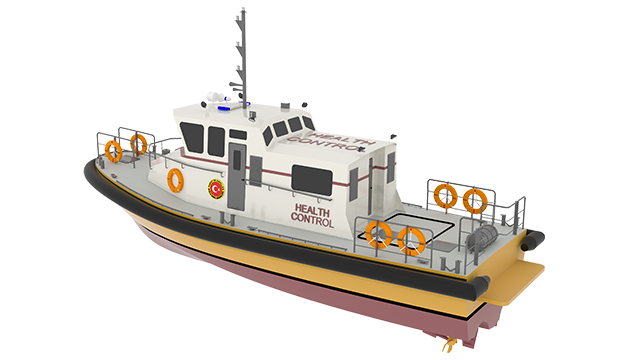

15m Pilot Boat is designed for Health Control of the Ministry of Health. The hull material is marine type alluminum alloy. (5083 H321). The vessel is driven by twin Volvo Penta D13 MH, each 600 BHP and can achieve a spped of 21 knots at %90 MCR. The vessel can operate up to the wave height of 3 meters.
Main Particular
| Loa | 14.93 m |
| Lwl | 13.41 m |
| B | 4.60 m |
| D | 2.40 m |
| d | 1.15 m |

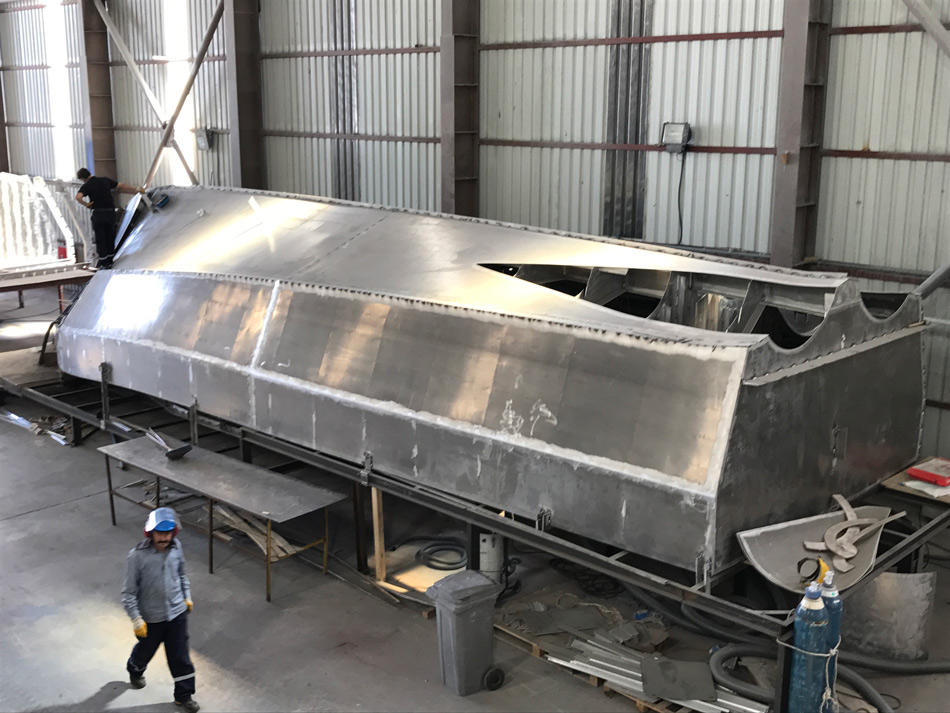

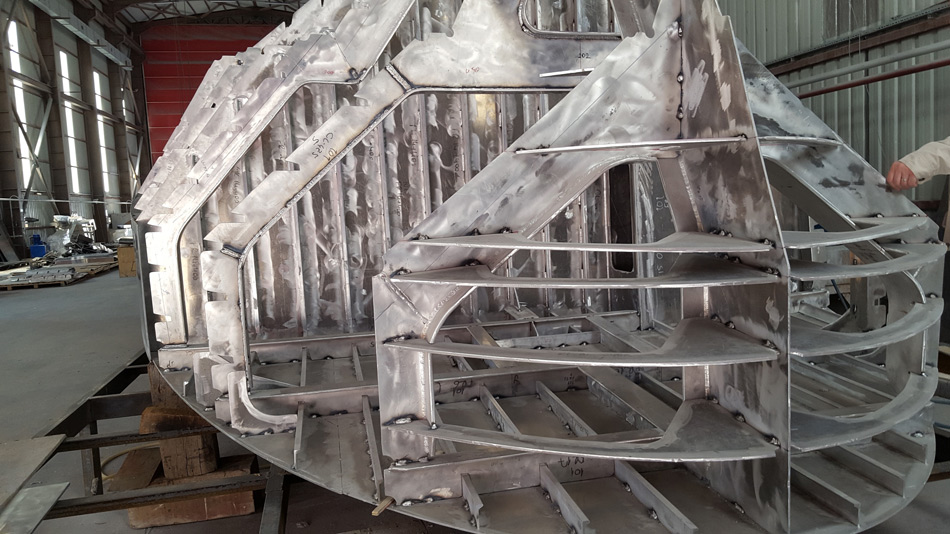

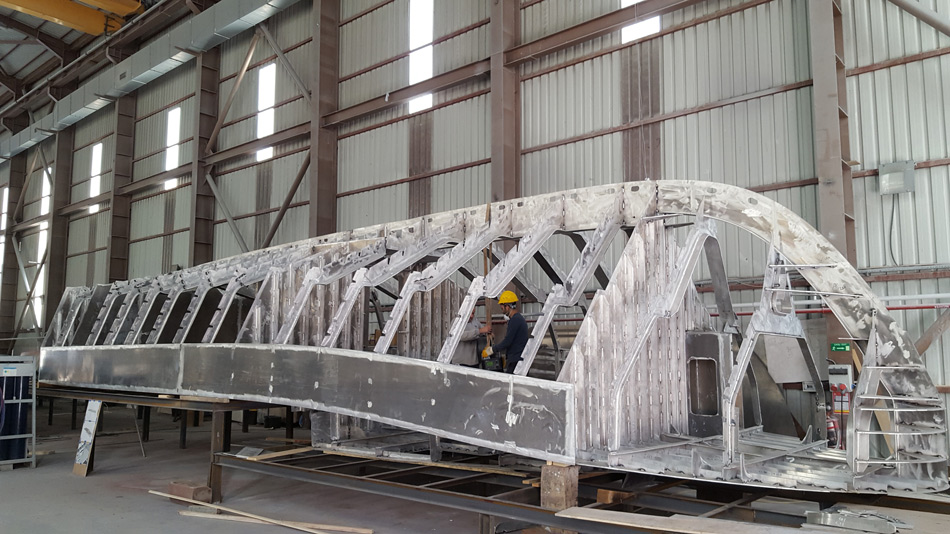

| Hull Material | Al. Alloy |
| Main Engine | 2x600 BHP |
| V | 21 Knots |
| Range | 200 Miles |
| Do | 2200 LT |
| FW | 100 LT |
| No of Crew | 4 |
CLASS NOTATION
TL +1A15, K20, Service Boat, HSDE, Aluminium, AUT10h (+) M
PROPULSION SYSTEM

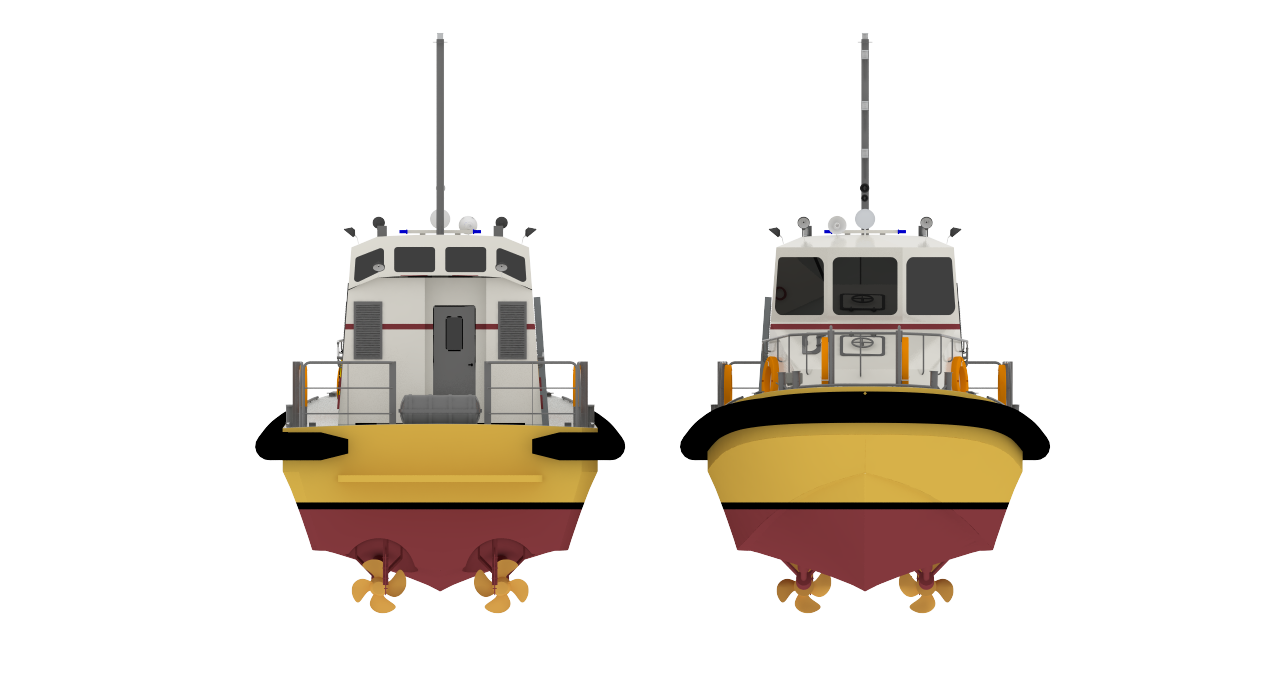

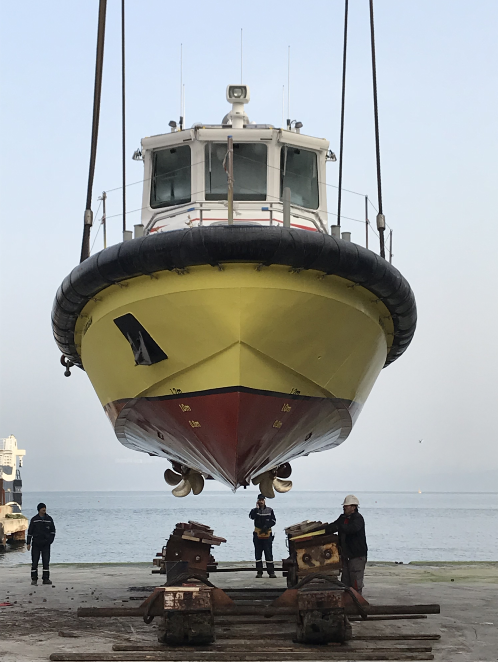

441 kW@1900 rpm Main Engine, 1:2.48 ZF510V Reduction Gear, Dia:1000mm 4 blade fixed pitch Propeller
CAPACITIES
2200 lt Diesel Oil, 100 lt Fresh Water
ACCOMMODATION
Messroom, Galley and WC for 4 crews.
