5.700 DWT Tanker
5.700 DWT Tanker

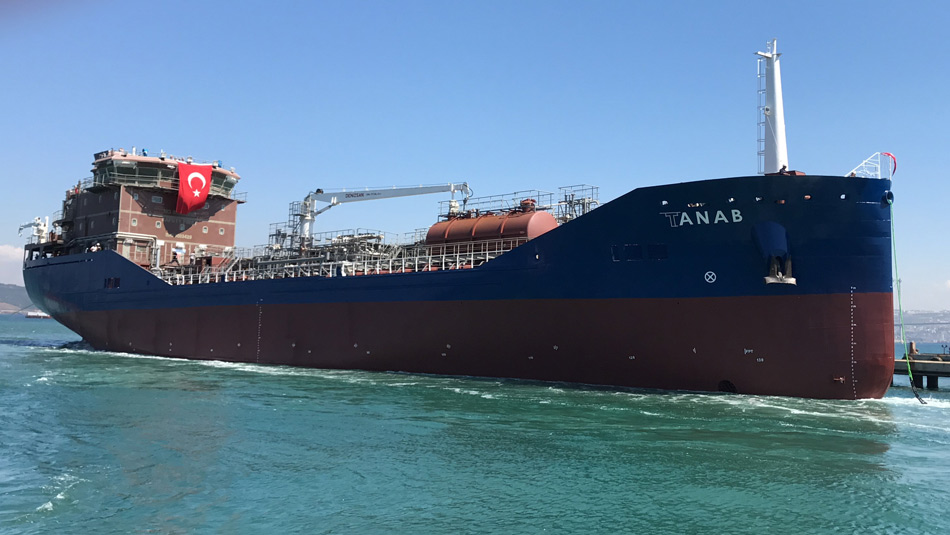

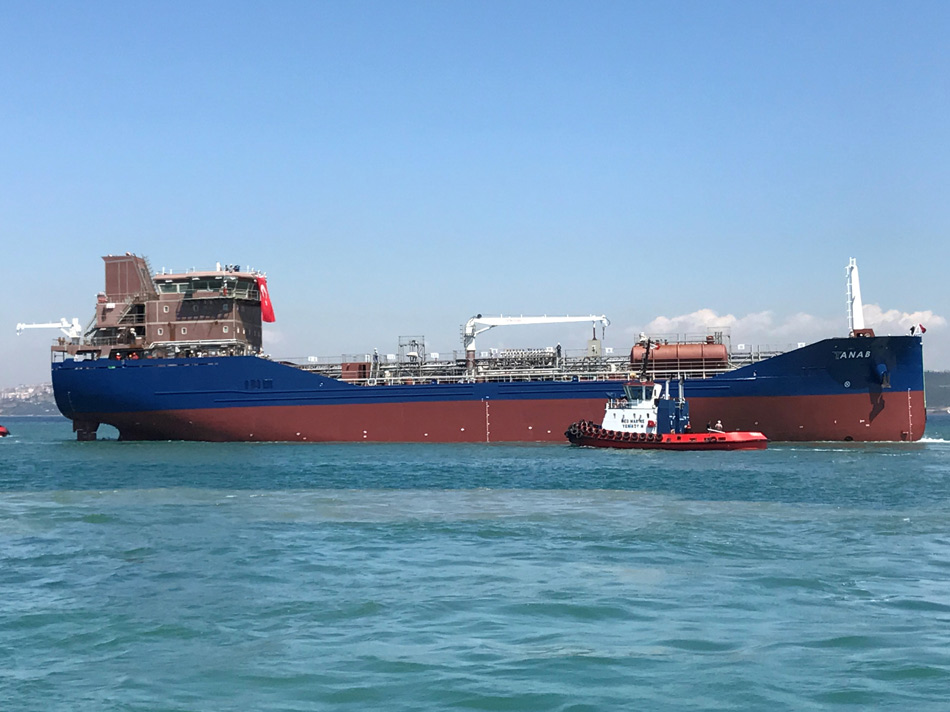

The vessel is designed as single-screw oil/chemical tanker to carry IMO II cargoes up to 1.54 t/m3 of specific gravity. The vessel has been built for Tanab Maritime. The vessel is driven by one Yanmar 6EY26Wmain engine with 4000mm diameter CPP propeller.
Main Particular
| Loa | 99.99 m |
| Lbp | 98.10 m |
| B | 16.60 m |
| D | 8.45 m |
| d | 6.50 m |
| DWT | 5700 t |
| Main Engine | 1920 kW |
| V | 11.5 Knots |
| Cargo Volume | 6250 m3 |
| Cargo density | 1.54 t/m3 |
| No of Crew | 15 |
| Class | K.R. |
CLASS NOTATION
KRS1-OIL Chemical Tanker(Double Hull) Product/ II & III 2G 1.54 SG (IBC), KRM1-UMA STCM NBS1 IGS RP1 Alternate Loading / Asymetric Loading
PROPULSION SYSTEM
1920kW @750rpm Main Engine, Dia:4000mm 4 blade Propeller, 1:6.25 Reduction Gear
CAPACITIES
Abt.6250 m3 Cargo Tanks, abt.2x80m3 Deck Cargo/Slop Tanks
ACCOMMODATION
9 Crew Cabin with WC, 7 Officer Cabin with WC, Dayrooms, Messroom, Galley, Office
