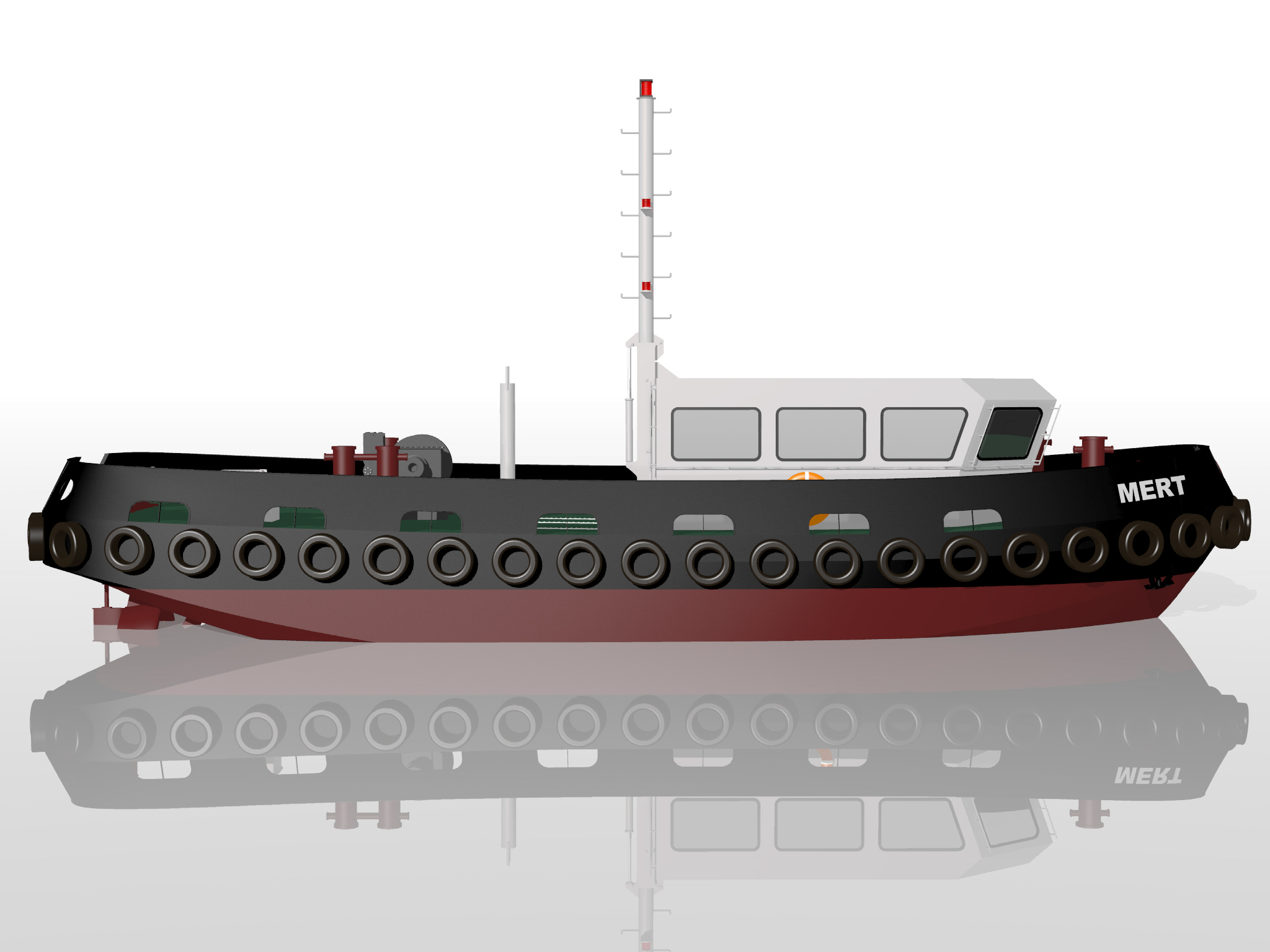

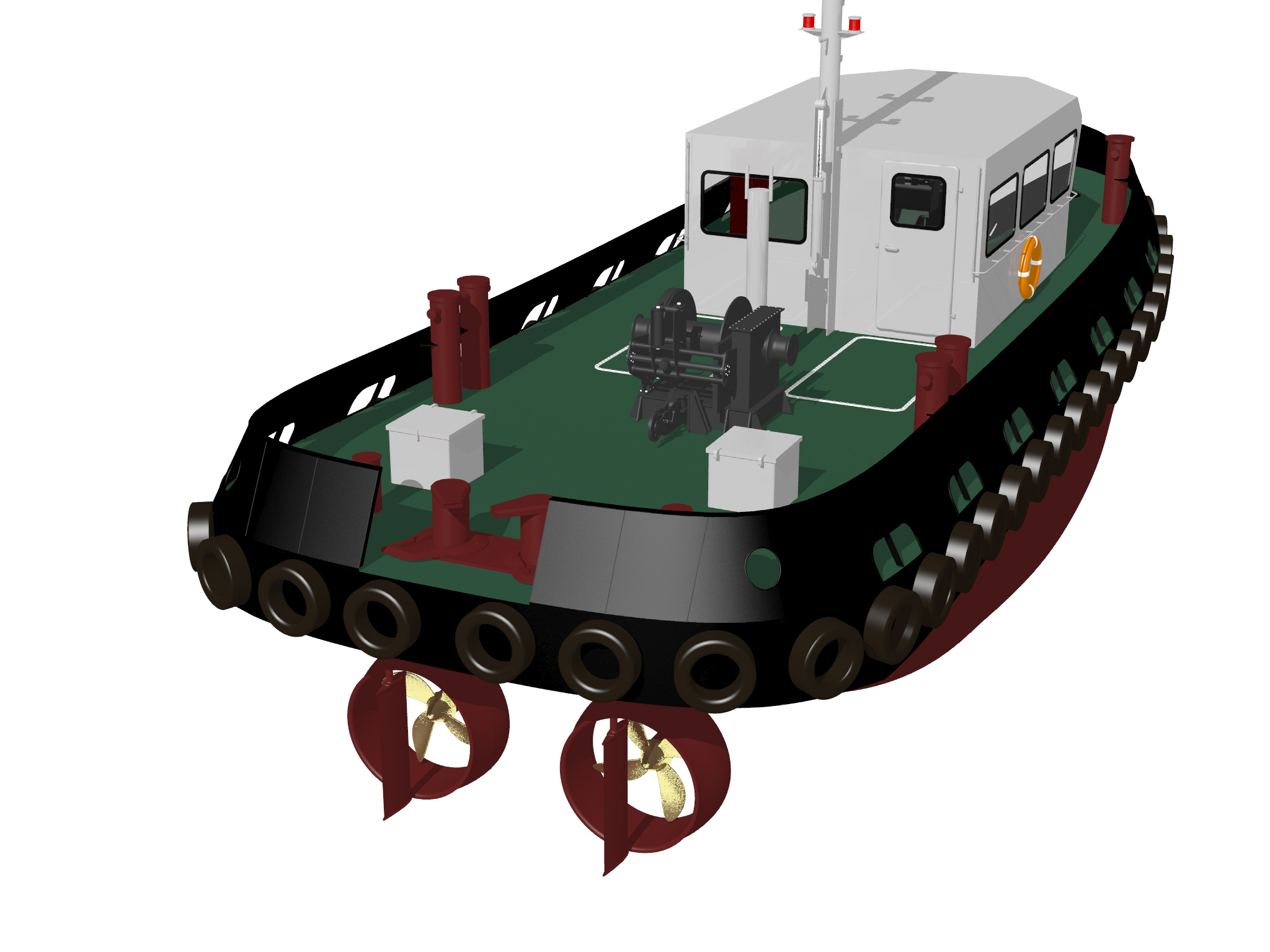

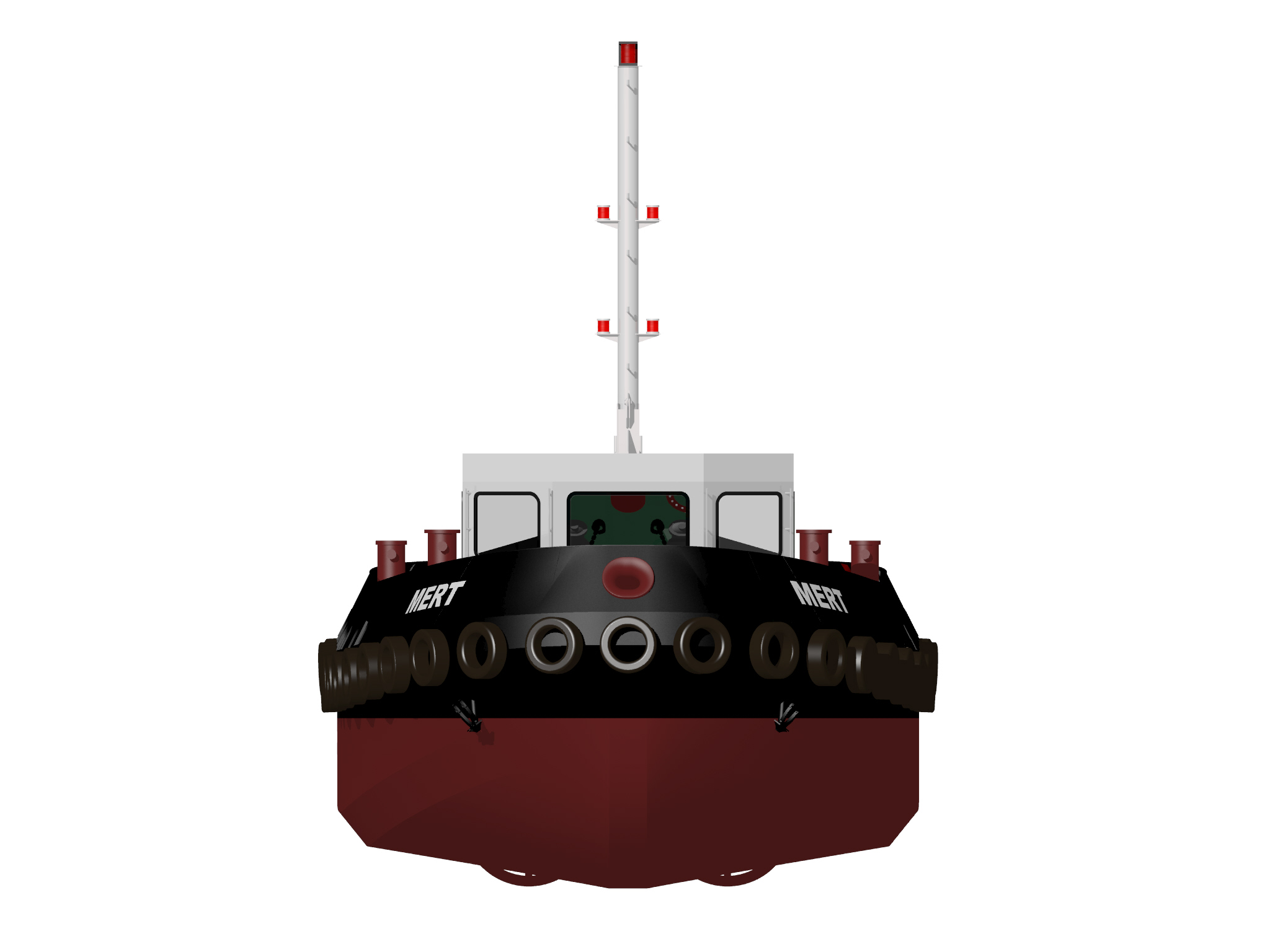

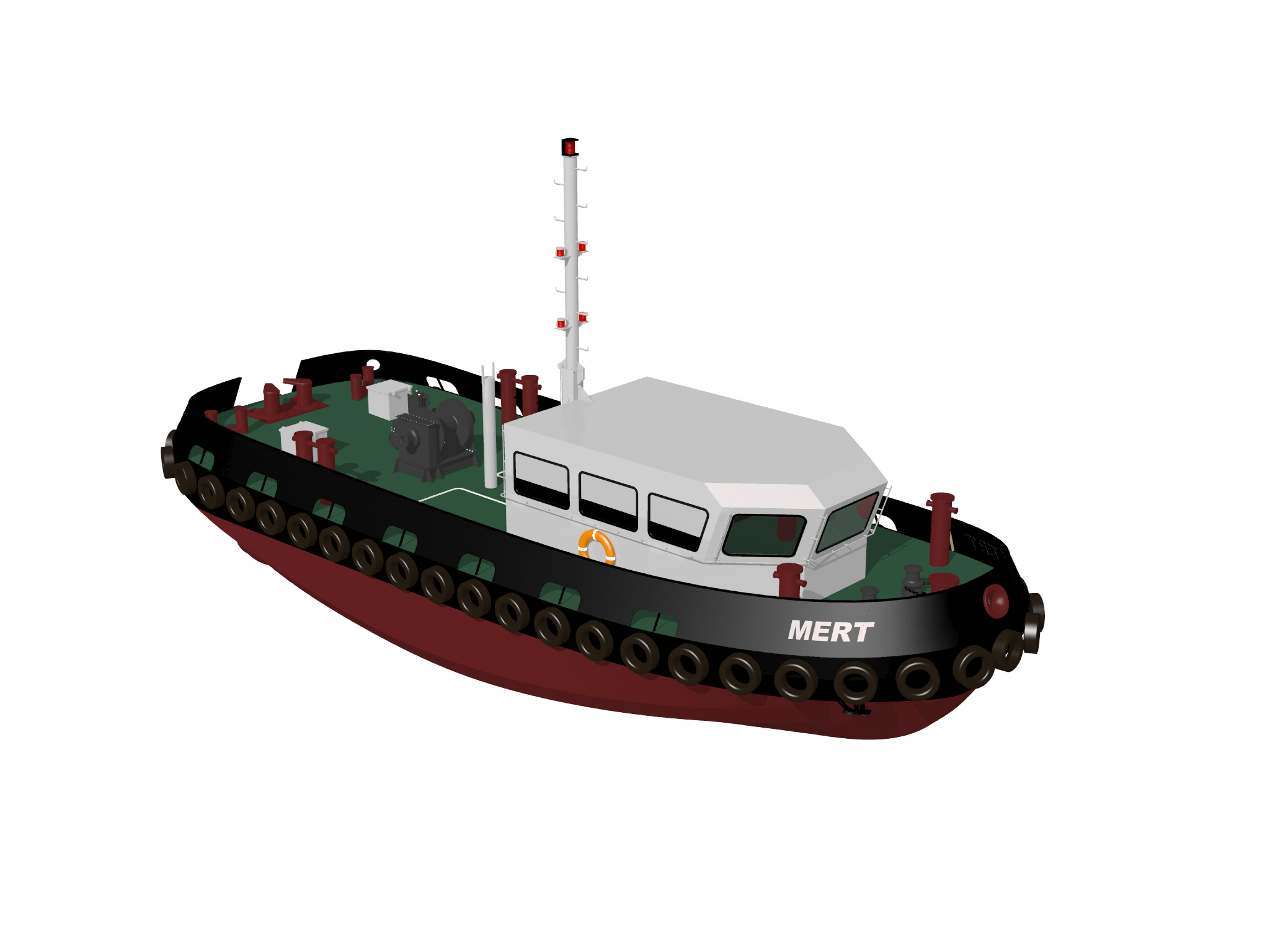

18m Tug
18m Tug
The vessel is specially designed for Egyptian MERT group with draft and air draft restrictions to work in River Nile. The vessel has towing winch and a towing hook, and has 12 tonnes bollard pull capacity. The vessel is driven by two Volvo Penta D16 main engines and 2 fixed pitch propellers in nozzle 19A.
Main Particular
| Loa | 17.40 m |
| B | 6.15 m |
| D | 2.80 m |
| d | 2.20 m |
| Air draught (max) | 2.95 m |
| Main Engine | 2x600 HP |
| V | 10 |
| Bollard Pull | 12 t |
| Propeller | 1400 mm |
| Accomodation | 4 |
Download Technical Sheet
CLASS NOTATION
BV I Hull, Machinery, TUG, Coastal Area Navigation.
PROPULSION SYSTEM

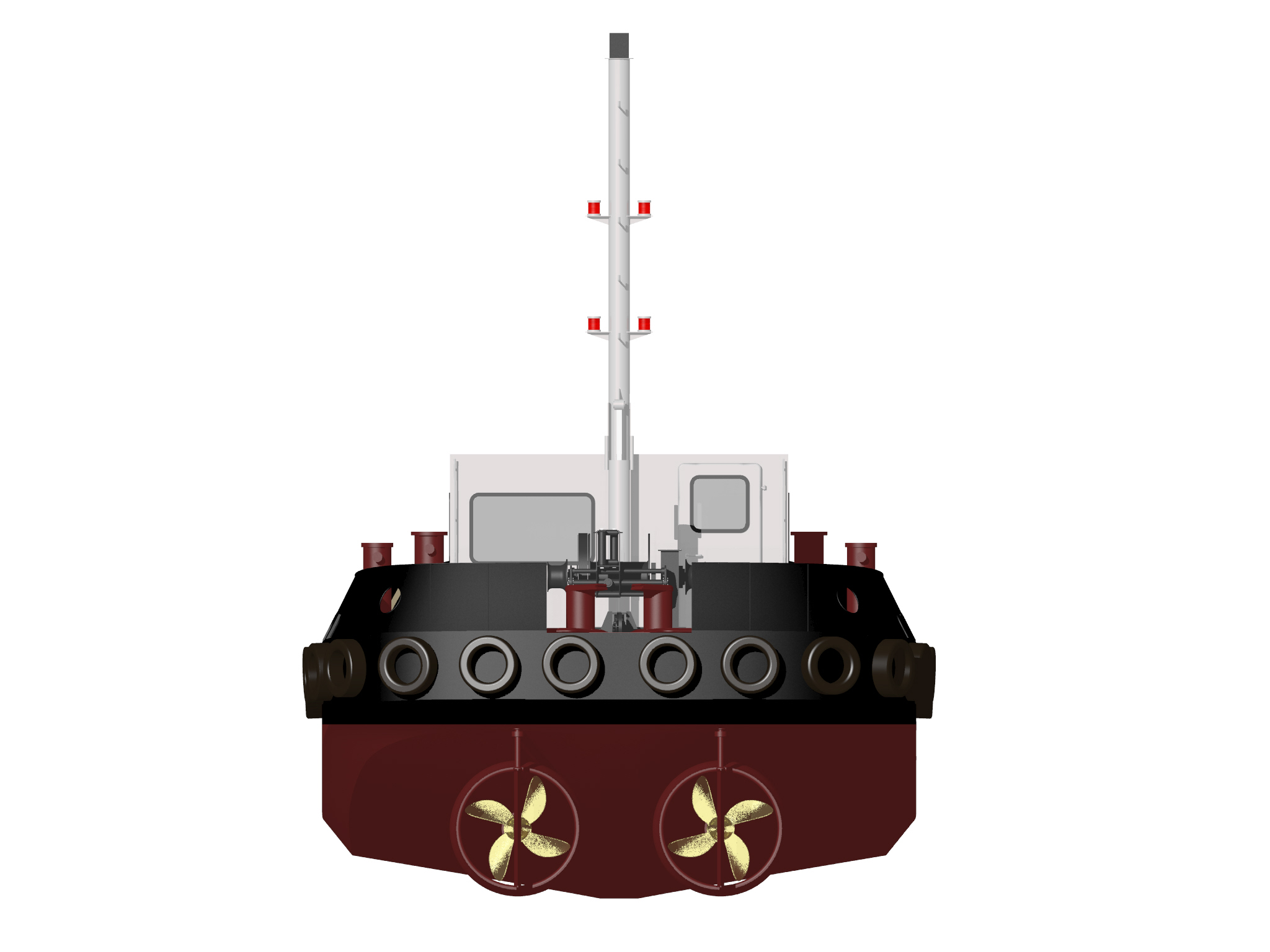

2x600HP @ 1800rpm main engines, 2x kaplan type propellers with 1400mm dia nozzle.
DECK EQUIPMENTS
80kg anchor, manuel operated anchor winch, 15t towing hook.
ACCOMMODATION
2x crew cabins with double tiers bunk bed, galley, messroom, WC & shower, wheelhouse inc. console and large seating group with table.
